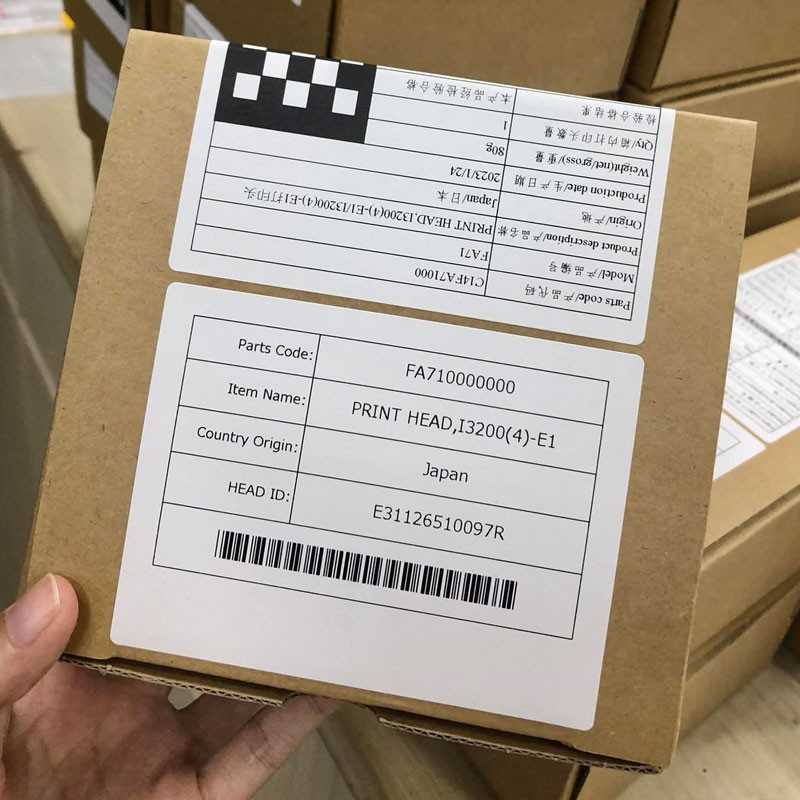

Epson I3200-E1 4 Color Printhead

The Epson I3200-E1 4 Color Printhead is a PrecisionCore MicroTFP printhead designed for eco-solvent and mild solvent inks. It features 3200 nozzles arranged in 8 rows, with a nozzle pitch of 1/300 inch and a resolution of 600 dpi (300 dpi per row). This printhead supports up to 4 colors and has an effective print width of 33.8 mm (1.33 inches). It weighs approximately 82 grams and has dimensions of 69.1 mm x 59.4 mm x 35.6 mm.

The Epson I3200-E1 printhead is corrosion-resistant, encased in a resin suitable for outdoor and oil-based printing applications. It offers various droplet ejection performance modes, including binary at 5 picoliters (pl) at 43.2 kHz, 3-level grayscale with droplets of 6 and 12.5 pl at 21.6 kHz, and 4-level grayscale with droplets of 3.8, 6.2, and 9.3 pl at 21.6 kHz. The viscosity range for compatible inks is typically between 3 to 4 mPa·s. The printhead is known for stable output and is slightly more precise than traditional DX5 printheads. It is suitable for high-quality indoor and outdoor eco-solvent printing applications, such as vehicle decals, lightbox fabrics, and outdoor signage.

Epson I3200-E1 4 Color Printhead key details:

• Printhead Type: PrecisionCore MicroTFP

• Intended Ink Type: Eco-solvent

• Dimensions: 69.1 mm (W) x 59.4 mm (D) x 35.6 mm (H)

• Weight: 82 grams

• Number of Nozzles: 3200 nozzles arranged in 8 rows

• Resolution: 600 dpi (300 dpi per row)

• Effective Print Width: 33.8 mm (1.33 inches)

• Color Capability: 4 colors (CMYK)

• Droplet Size and Frequency:

  • Binary mode: 5 picoliters at 43.2 kHz

  • 3-level grayscale: 6 and 12.5 picoliters at 21.6 kHz

  • 4-level grayscale: 3.8, 6.2, and 9.3 picoliters at 21.6 kHz

• Ink Viscosity Range: Approximately 5-7 mPa·s

• Typical Applications: Suitable for eco-solvent ink printing with good performance indoors and outdoors, often used for outdoor materials like lightbox fabrics, vinyl, and vehicle decals.

• Print speed for a single head, 4 colors, 4 passes: Around 13-16 square meters per hour

• Compatibility Note: Designed specifically for eco-solvent inks; differs in nozzle structure and ink compatibility compared to other I3200 variants optimized for aqueous or UV inks.

This Epson I3200-E1 4 Color Printhead is valued for high resolution, precise ink droplet control, and compatibility with eco-solvent ink formulations, making it ideal for vibrant, durable print applications requiring four-color output.
