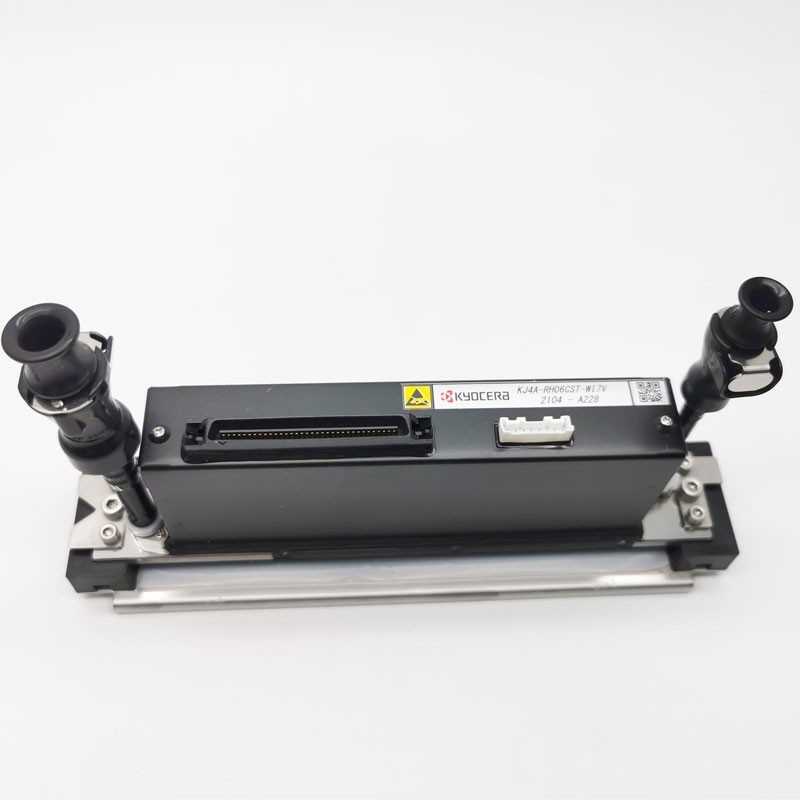

Kyocera KJ4A-RH06CST-STDC Printhead

The Kyocera KJ4A-RH06CST-STDC printhead is designed for high-speed single-pass and multi-pass printing applications using UV ink. It features 2,656 nozzles arranged over a 108.25 mm wide print swathe with a 0.042 mm nozzle pitch, producing a resolution of 600 x 600 dpi. It has a maximum drive frequency of 30 kHz and can achieve printing speeds up to approximately 70-75 meters per minute. The printhead supports droplet volumes primarily at 5, 7, 12, and 18 picoliters.

It includes internal filters to remove foreign particles and a built-in heater to stabilize performance against ambient temperature changes. The physical dimensions are about 200 mm x 30 mm x 62-69 mm, and it optimally works with UV ink viscosity in the range of 5.0 to 7.0 mPa·s. This printhead is commonly used in industrial UV printers such as those from Gandi and Jetsci brands.​

Kyocera KJ4A-RH06CST-STDC Printhead key details:

• Ink Compatibility: UV ink

• Number of Nozzles: 2,656 nozzles

• Resolution: 600 × 600 dpi

• Print Width: 108.25 mm

• Nozzle Pitch: 0.042 mm

• Maximum Drive Frequency: 30 kHz

• Drop Volume: 5, 7, 12, and 18 picoliters

• Print Speed: Up to 70 meters per minute

• Dimensions: Approximately 200 mm (width) × 30 mm (depth) × 62–69 mm (height)

• Weight: About 420 grams

• Features: Built-in filters to remove foreign particles, built-in heater for temperature compensation, and unique ink supply design for stable jetting and reduced non-jetting

• Input Voltage: 3.3 V for logic and 29 V for driving

• Applications: Suitable for UV inkjet printers requiring high precision and speed

Compatible printers with the KJ4A-RH printhead include:

• Jetsci Kolorsmart +

• HAWK M6

• Gemini 214C

• Gemini 108C

• Gandi Digital Gladi8tor

• DPI M7

• Dilli Neo Sun FB2513-04 D-WX

This Kyocera KJ4A-RH06CST-STDC Printhead is optimized for reliable, high-quality UV inkjet printing at industrial speeds with stable ink jetting and temperature compensation to reduce non-jetting for continuous operation.​
