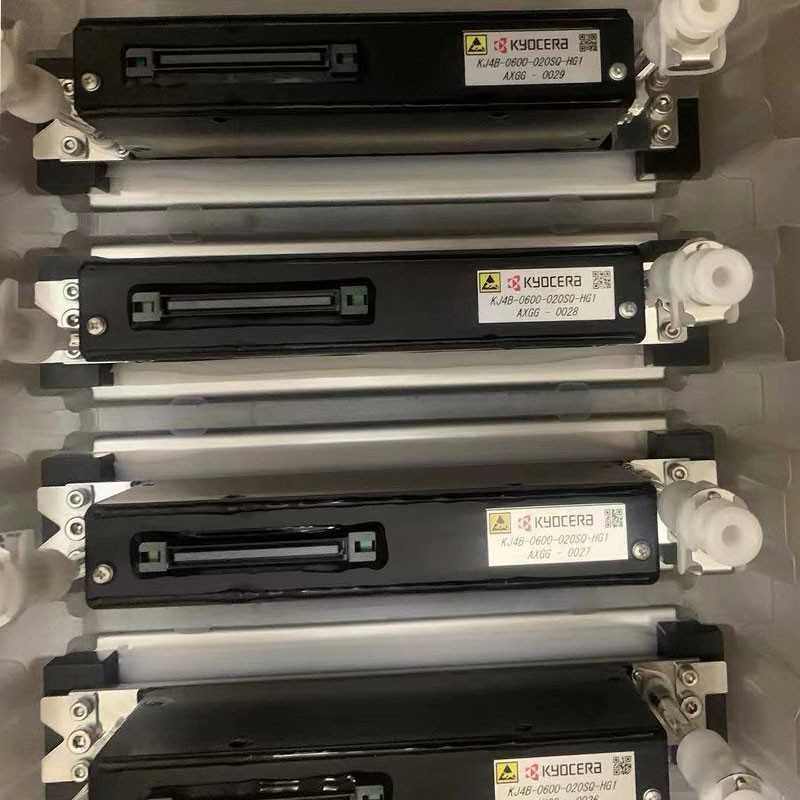

Kyocera KJ4B-0600-020SQ-CJT1 Printhead

The Kyocera KJ4B-0600-020SQ-CJT1 printhead is a high-performance inkjet printhead typically used in digital textile printing and other industrial inkjet applications. The Kyocera KJ4B-0600-020SQ-CJT1 printhead is designed for high-speed, high-resolution digital printing, especially suited for water-based ink applications such as digital textile printing.

Kyocera KJ4B-0600-020SQ-CJT1 Printhead Key details:

• Resolution: 600 × 600 dpi

• Total nozzles: 2,656

• Effective print width: 108.25 mm

• Maximum drive frequency: 30 kHz

• Maximum print speed: Up to 75 meters per minute

• Drop volumes: 5, 7, 12, and 18 picoliters

• Typical ink viscosity: 5.0 - 6.0 mPa·s

• Dimensions: Approximately 200 × 25 × 58 mm

• Dry weight: Around 420 grams

• The printhead uses piezo actuator technology for precise ink deposition and stable continuous performance.

• It is optimized for water-based inks and is commonly used in high-speed digital textile printers for detailed grayscale and one-color printing.

This Kyocera KJ4B-0600-020SQ-CJT1 Printhead delivers high quality with small drop volumes at fast speeds, making it suitable for demanding industrial digital printing environments.
