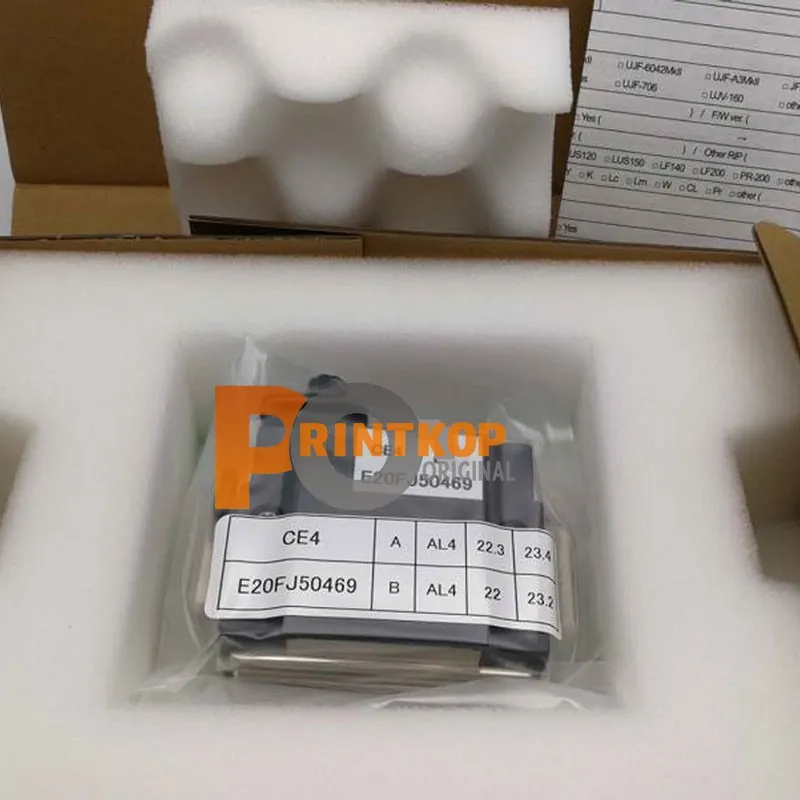

Océ Arizona 550/460 Printhead Assembly

The Océ Arizona 550/460 Printhead Assembly uses a Toshiba CE4/CE2 grayscale micro-piezo printhead (Océ part numbers 3W3010112660 or 3W3010122104).

Item specifics

• Manufacturer: Toshiba TEC (OEM partner for Canon / Océ)
• Océ/Canon Part Numbers: 3W3010112660 / 3W3010122104
• Fujifilm Part Number: 1060074201
• Printhead Model: CE4M / CE4 Grayscale Series
• Technology Type: Multi-drop Grayscale Micro-Piezo Technology
• Active Nozzles: 636 Channels (318 nozzles per row x 2 rows)
• Nozzle Density: 150 npi (Nozzles per inch) per row
• Native Resolution: 150 dpi (up to 300 dpi for 2-colour operation)
• Droplet Volume Range: Variable from 6 picolitres (pl) minimum up to 90 picolitres (pl) maximum
• Maximum Drop Frequency: 28.0 kHz (at 4 levels) / 45.0 kHz (at single drop mode)
• Print Swath Width: 53.7 mm (2.11 inches)
• Dimensions (Head Only): 85 mm (W) x 70 mm (D) x 23 mm (H)
• Weight: Approx. 145 grams (excluding cable assembly)
• Ink Compatibility: UV-Curable (Ultraviolet) and specialised Oil-Based pigment inks
• Integrated Heater: Thermistor-controlled internal heating module built into the manifold
• Country/Origin: Japan (Manufactured at official Toshiba Tec facility)

Compatible printer models

This Océ Arizona 550/460 is a direct OEM replacement for a wide range of industrial UV flatbed, roll-to-roll, and eco-solvent large-format printers:

• Océ Arizona: 460 GT, 460 XT, 480 GT, 480 XT, 550 GT, 550 XT
• Fujifilm Acuity: Advance HD2545, Advance HD2565, Select 20 Series

Important Notice

To prevent costly buyer return requests, it is critical to explicitly state what this head does NOT fit:

Do not buy this printhead if you own any of the machines listed below. It looks identical on the outside, but the internal electronics are totally different and will not work.

1. Newer Océ Arizona Series: Does NOT fit Arizona 318, 360, 365, 440, 1200, 1300, 2200, 2300, or 6100 series (these use completely different printhead architectures like Océ VariaDot or different Toshiba/Fujifilm heads).
2. Older Océ Arizona Series: Does NOT fit legacy models like the Arizona 200, 250, 300, or 350 GT (these use older Toshiba TEC CE2 or CA4 heads with different electrical voltages and pin connections).
3. Fujifilm Acuity Series: Does NOT fit Acuity Prime, Acuity Ultra, or older Acuity Advance LT models.
4. Other Printer Brands: Does NOT fit Mimaki, Roland, Mutoh, or Epson printers, even if they use UV inks.

Not sure? Send us a quick photo of your current printhead's factory part code sticker before buying, and we will verify the fit for you!

Condition & Packaging

• Condition: New
• Packaging: Factory sealed in original Toshiba packaging
• Handling: Do not open the printhead package until you are ready to install. Avoid touching the nozzle plate or electrical contacts. Store in a cool, dry place, away from direct sunlight and extreme temperatures.

Shipping

• Handling Time: We ship within 1–2 business days after cleared payment.
• Shipping Service: Shipped via FedEx / DHL / Local courier with tracking.
• Packaging: Printhead is packed securely with protective materials to prevent damage during transit.
• Combined Shipping: We offer combined shipping on multiple items. Please message us before payment for a revised invoice if you are purchasing more than one item.
• International Shipping: Available, shipped via FedEx / DHL / Local courier with tracking. Import duties, taxes, and customs charges are the buyer’s responsibility and are not included in the item price or shipping cost.

Returns

• Return Window: Returns accepted within 14 / 30 days of delivery.
• Condition for Return: Item must be unused, unopened, and in original factory-sealed packaging. Once the printhead packaging is opened or the head is installed, it cannot be returned unless it is proven to be dead on arrival (DOA) and not damaged by improper handling or installation.
• Return Shipping: Buyer pays return shipping unless the item is not as described or is DOA and confirmed by us.
• Refund: Refund issued for the item price once the returned item is received and inspected. Original shipping charges are non-refundable unless the return is due to our error.

Please contact us before initiating a return so we can provide instructions and, if applicable, an RMA number.

Warranty

• Seller Warranty: This item is sold as new, factory sealed. We do not provide an additional seller warranty beyond the return policy described above.
• Manufacturer Warranty: Any manufacturer warranty is subject to Toshiba’s policies and may require proof of purchase from an authorized distributor. We are an authorized Toshiba Distributor - please message us if you have specific warranty questions.
• DOA Policy: If the printhead is confirmed dead on arrival (no electrical shorts caused by the user, proper installation, and compatible electronics), we will replace or refund according to our return policy. Damage caused by incorrect installation, incompatible electronics, wrong ink, static discharge, or physical damage is not covered.

Important Handling & Safety Notes

• Do not open the printhead until you are ready to install it.
• Follow your printer manufacturer’s installation and priming procedures exactly.
• Ensure your ink system, temperature settings, and waveforms are configured for the Océ Arizona 550/460 Printhead Assembly.
• Avoid touching the nozzle plate, filter, or electrical contacts.
• Store in a clean, dry environment, away from dust, direct sunlight, and temperature extremes.
