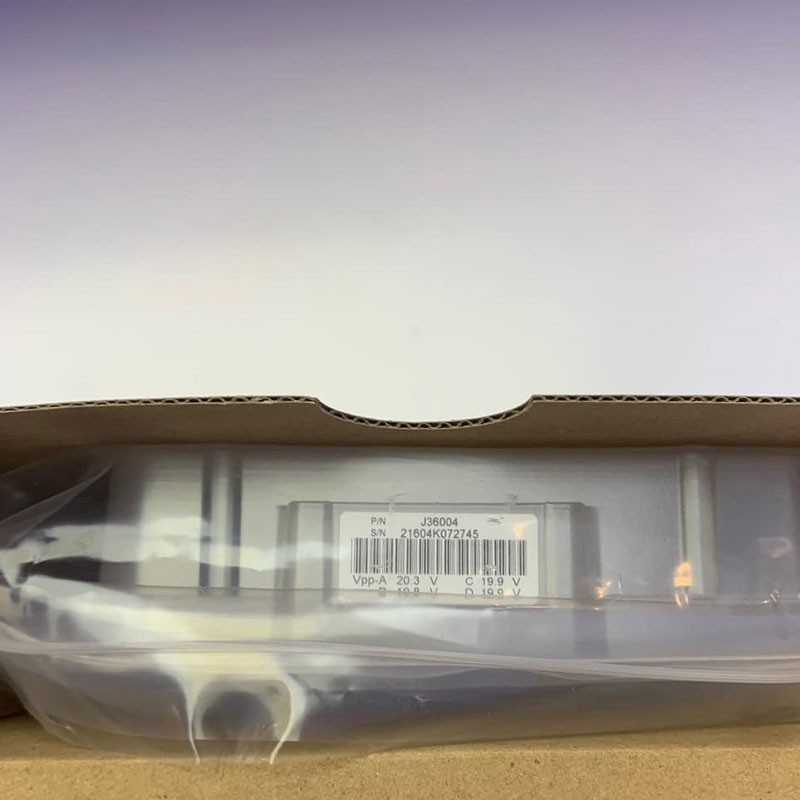

Ricoh Gen5 / 7PL Water-based Printhead, MH5421 - J36004

This Ricoh Gen5 / 7PL Water-based Printhead, MH5421 - J36004 with a total length of 500mm is suitable for a range of water-based printers. It supports up to 2 colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead and it is covered by a manufacturer warranty.

This Ricoh GEN5 is 500mm long in total (head body + cable + connectors). Head cable is 400mm long.

This Ricoh Gen5 / 7PL Water-based Printhead, MH5421 - J36004 comes with the hose barbs which can easily be removed if needed.

Product Specifications

• Dimensions: 89 x 25 x 69 mm (excluding cables)
• Head materials: SST, Nickel alloy and Epoxy Adhesive
• Nozzle plate surface: Coated SST
• Number of nozzles: 4 x 320 nozzles
• Nozzle spacing: 0.1693 mm
• Nozzle density: up to 600 npi
• Piezo yype: D33 Stacked PZT
• Temperature control: Integrated Heater and Thermistor
• Operator temperature range: Up to 80° C
• Native drop volume: 7 pl
• Drop volume range: 7 - 35 pl
• Drop velocity: 7 m/s
• Jetting frequency: Up to 60 kHZ
• Ink compatibility: Water Inks
• Life: 100 billion actuations per nozzle
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
