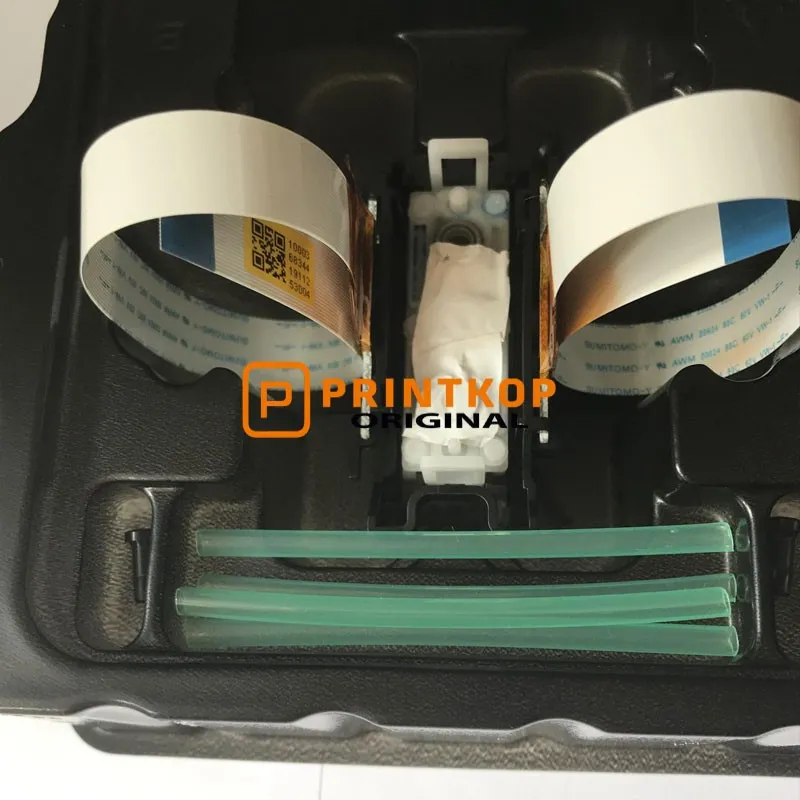

Roland VG-540 / VG-640 Printhead - 6000005975

This Roland VG-540 / VG-640 Printhead - 6000005975 set is suitable for second generation of Roland Truevis VG-540i & VG-640i printers. This is the original Roland part (number 6000006702 replacing 6000005976, 6000003991, 6000003077, 6000003425, 6000002330, 6000004770, 6000005975, 6000004769 & 6000003990).

Initially there were two head versions, with short cables (200mm) for SG and some VG printers, and with long cables (250mm) for all later models. This VG-i Assy Inkjet Head 250L - 6000006702 printhead is the long cable version. The Roland VG-540 / VG-640 Printhead - 6000005975 with long cables can be used instead of the one with short cables. This printhead is therefore suitable for all SG and VG models (including SG and VG version 2 and 3).

Product Specifications

• Size: 61.8(W) × 40.5(D) × 23.3(H) mm (2.43" × 1.59" × 0.92")
• Number of Nozzles: 384
• Nozzle spacing (Within a row): 0,1693 mm/row
• Nozzle spacing (Row to row distance): 0.931 mm
• Method: Piston pusher with metallic diaphragm plate
• Temperature Control: No heater or thermistor
• Drop volume: Binary mode : 3-5pl / Grey-scale mode : 21±2pl
• *depending on the ink
• Jetting Frequency: Binary mode : 30kHz / Grey-scale mode : 24kHz
• Life: 30 billion actuations per nozzle
• Compatible ink: Aqueous, Solvent
• We recommend to change the head cables when installing a new printhead.

This set includes:

• 1x head
• 1x fixing tape
• 1x 250mm long HF protected (aluminium) head data cable + plastic shields
• 1x head tube
