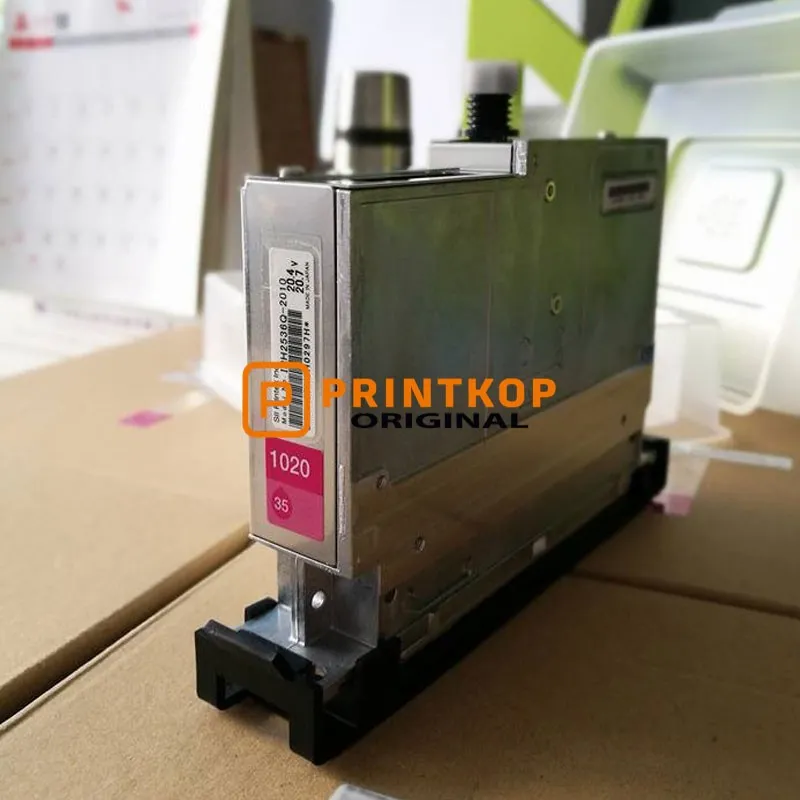

Seiko SPT-1020 35PL Printhead

The Seiko SPT-1020 35PL printhead is built for demanding large-format printing environments where reliability, precision, and speed matter. It is a physical combination of two SPT510-35PL heads, giving it a 360 DPI physical resolution and making it well suited for high-precision, high-coverage printing.

With 1020 nozzles, 35 pl ink droplet size, and an 8.29 kHz jetting frequency, this printhead is engineered for consistent performance in commercial printing systems. It is commonly used with oil-based, UV, and solvent-based inks, and is designed for applications that require dependable output and efficient production.

Key Features

•     1020 active nozzles.
•     71.9 mm print swathe width.
•     Native resolution of 360 npi.
•     35 pl drop volume.
•     Jetting speed of 4.2 m/s.
•     Jetting frequency of 8.29 kHz.
•     Compatible with oil-based, UV, and solvent inks.
•     Designed for high-precision, high-coverage single-pass printing.

Technical Specifications

Suitable For

•     Wide-format digital printers.
•     Single-pass printing systems.
•     Commercial and industrial inkjet applications.
•     High-coverage output where stable nozzle performance is important.

Notes

This printhead is intended for use in compatible industrial printer systems only. Before purchase, always confirm compatibility with your printer model, ink type, and controller configuration.
