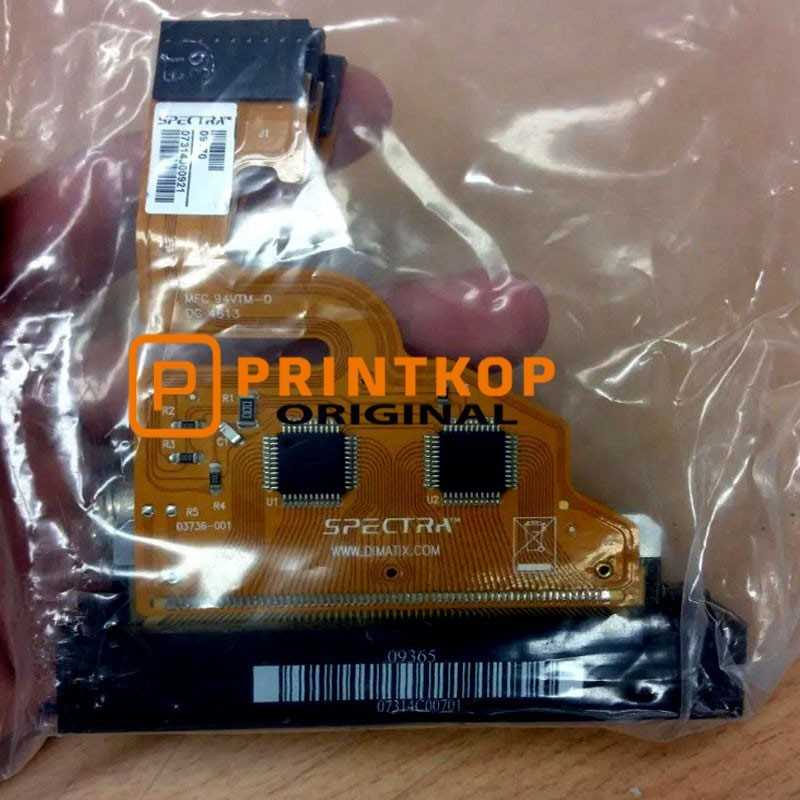

Spectra S-Class SE-128 AA Printhead

The Spectra S-Class SE-128 AA Printhead is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 900 dpi. Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 nozzles. It has been calibrated for a droplet size of 30 pico litre and has a maximum firing frequency of 40 kHz.

This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
These Spectra S-Class SE-128 AA Printhead are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.

Specifications

• Technology: Piezo Electric
• Max. Resolution: 900 dpi
• Cal. Droplet Size: 30 pico litre
• Adj. Range for Droplet Size: 25-30 pico litre
• Tot. Amount of Nozzles: 128
• Nozzle Spacing: 508 microns
• Nozzle Diameter: 35 microns
• Firing Frequency: 40 kHz
• Operating Temperature: up to 90°C
• Ink Compatibility: Solvent and UV Inks
• This printhead carries a manufacturer warranty.
• Country of origin : USA

Note:
Gandinnovations / AGFA: Jeti printers use SE-128, SL-128 or SM-128 print heads depending on the original printer configuration. Please contact us for more information.
