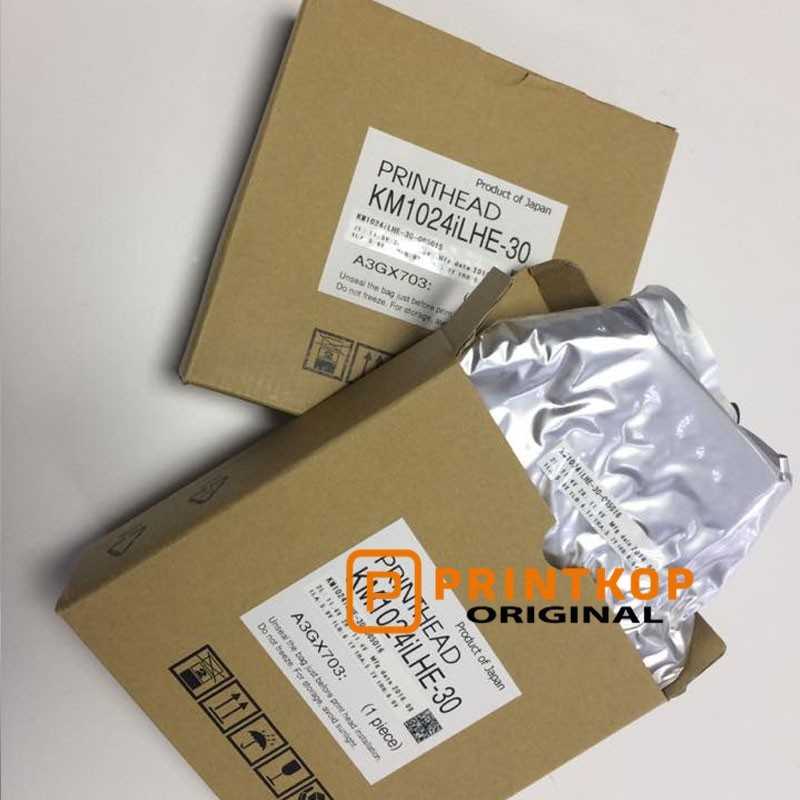

Konica 1024i LHE Printhead

The Konica 1024i LHE printhead is a high-speed, industrial inkjet printhead featuring 1024 nozzles arranged in a multi-line structure with independent firing technology. It has a printing width of 72mm, uses piezo drop-on-demand technology, and offers a high maximum drive frequency of 27kHz for the LHE model. This printhead supports up to 8 grayscale drop sizes, with native drop volumes of 30pl for the LHE variant.

It is compatible with solvent, oil, UV, and water-based inks and includes a built-in heater for stable ink temperature control. The dimensions are approximately 131mm in length, 18mm in width, and 94mm in height, with a weight under 150g. It is designed for high productivity and high-definition printing suitable for single-pass printing systems and offers durability with good fluid compatibility and ink circulation capability for inks prone to precipitation.

​Konica 1024i LHE Printhead Key details:

• Nozzles: 1024 (256 x 4 rows)

• Printing width: 72mm

• Drop size (LHE model): 30pl

• Max drive frequency: 27kHz

• Technology: Piezo drop-on-demand with independent firing

• Ink compatibility: Solvent, oil, UV, water-based inks

• Built-in heater: Yes

• Dimensions: 131mm (L) x 18mm (W) x 94mm (H)

• Weight: Less than 150g

• Multi-drop size capability (up to 8 levels of grayscale)

• Suitable for high-speed, single-pass industrial printing systems

This 1024i LHE Printhead is favored for high-speed, high-definition printing applications requiring wide print width and high reliability.
