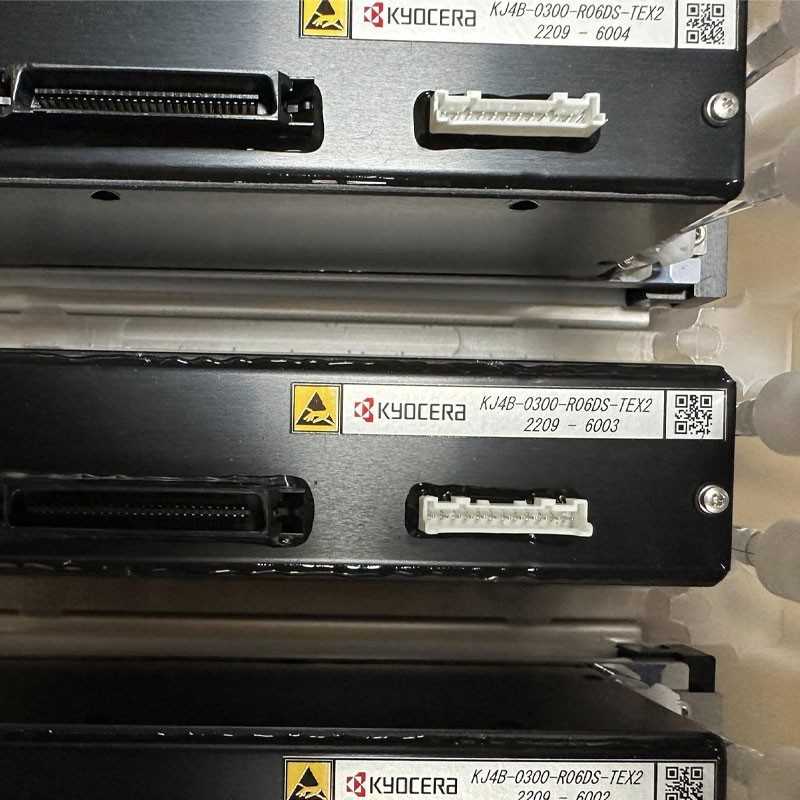

Kyocera KJ4B-0300-R06DS-TEX2 Printhead

The Kyocera KJ4B-0300-R06DS-TEX2 Printhead is a high-speed inkjet printhead designed primarily for water-based (aqueous) inks. It features a standard resolution of 300 x 300 dpi and operates at a maximum frequency of 30 kHz, suitable for fast printing applications. The printhead has 2,656 nozzles arranged over a print width of approximately 112 mm, with a small droplet volume of around 5 picoliters (pl), enabling high-quality output at printing speeds up to 120 m/min.

Its dimensions are roughly 200 × 36 × 68.5 mm and it weighs about 540 grams. This model typically supports two colors and is compatible with printers designed for aqueous inks, often used in various industrial and commercial printing scenarios. It is made in Japan and generally comes with a manufacturer warranty but with exclusions on certain items.​

Key Specifications

Key Features

• Internal heater adjusts for external temperature variations

• Internal filters eliminate foreign objects in ink

• Stable ink supply via unique ink channel design

• One-color printhead optimized for textile applications

Compatible Printers

• Printerevolution: T1800, T2600, T3200

• FabriVu 340

• Hanway Highjet 2500B

• EFI Reggiani BLAZE

• Handtop Homer textile printers

This printhead is optimized for high-quality textile printing with small 5pl droplets at 75 m/min, making it suitable for industrial fabric printing applications.
