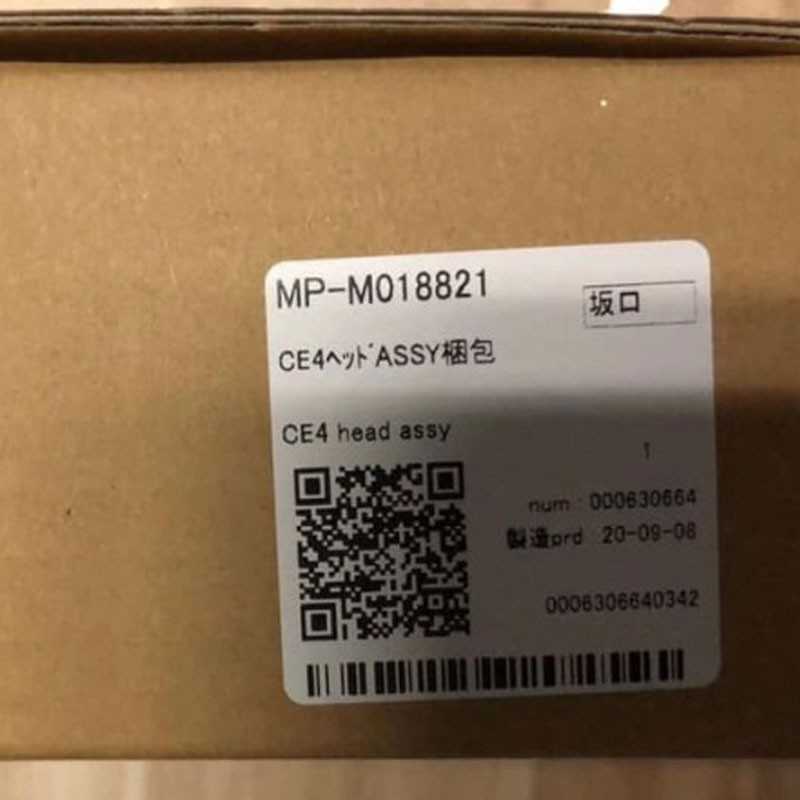

Mimaki M018821 Print head

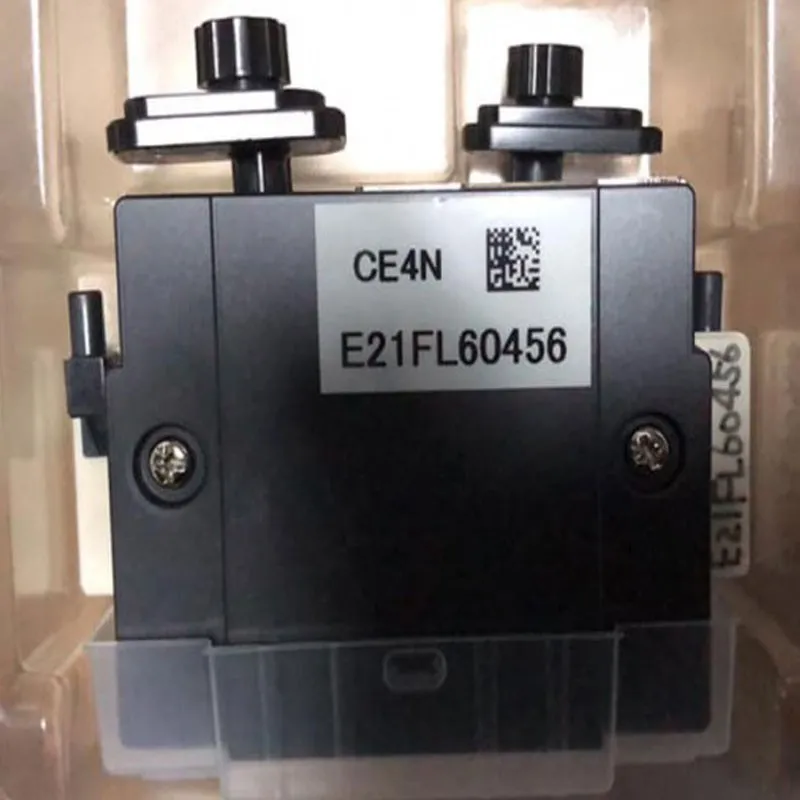

The Mimaki M018821 print head, also known as the CE4N print head, is an original Mimaki part compatible with multiple Mimaki printer models including the UJF-3042 MKII, UJF-6042 MKII, and the UJV, JFX, and UJF-706 series. It replaces older models like M008386 and KX-CE308644CS.

This print head is manufactured by Toshiba (model CE4M) and features 318 active nozzles with drop volumes ranging from 6 to 90 picoliters, suitable for precise and high-quality printing, especially in UV printers. This part is designated as an assembly (Assy) for easy replacement in the specified printers.

Mimaki M018821 Print head key details as follows:

• Technology: Multi-drop Grayscale Micro-Piezo

• Considered a replacement for older parts M008386 and KX-CE308644CS.

• Grayscale levels: 16

• Active nozzles: 318

• Print swathe width: 53.6 mm

• Nozzle pitch: 169 micrometers

• Native resolution: 150 dpi

• Drop volume range: 6 to 90 picoliters

• Typical firing frequency: 2.8 to 28 kHz

• Ink compatibility: Oil-based pigment ink and UV-curable pigment ink

• Printhead weight (dry): 148 grams

• Dimensions: 85 x 70 x 23 mm

• Suitable for Mimaki printers such as UJF-3042 MKII, UJF-6042 MKII, UJV, JFX, and UJF-706 series

• This is an original 100% brand-new part with warranty, guaranteeing reliability and testing standards

These specifications indicate the Mimaki M018821 Print head is designed for high-quality, precise printing with various compatible inks suitable for UV and solvent-based applications, common in Mimaki's UV flatbed and desktop printers.​
