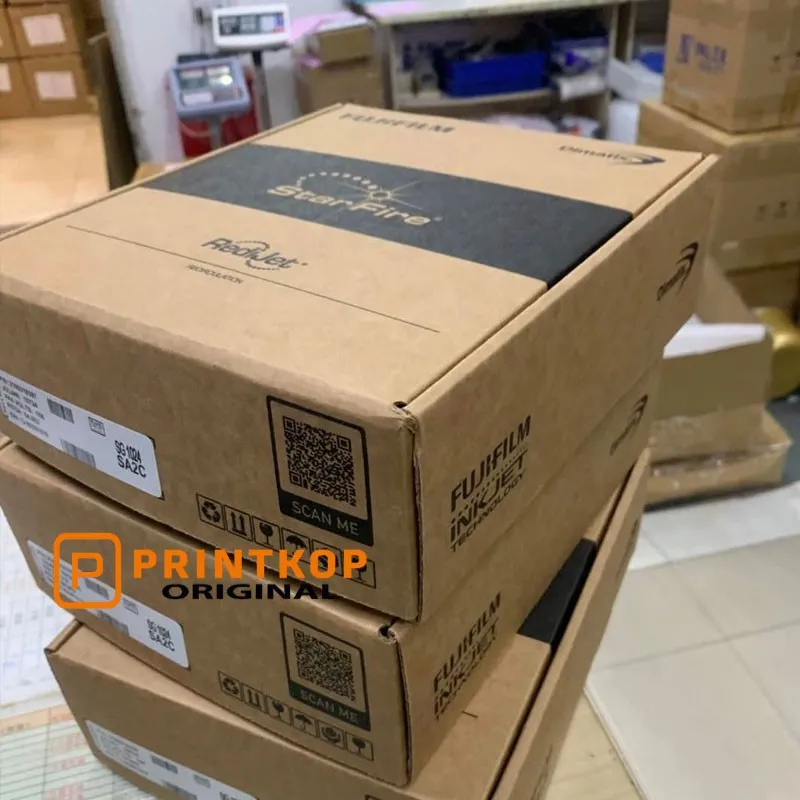

StarFire SG1024/SA-2C Printhead

The StarFire SG1024/SA-2C Printhead is a high-performance, compact, and robust inkjet printhead designed primarily for demanding industrial applications such as textile printing, wide format, and commercial decorating. It features two separate ink paths, each with 512 independent channels arranged in four rows on a single metal nozzle plate, totaling 1024 nozzles that can be fired individually or simultaneously. The printhead supports two-color operation at resolutions up to 200 dpi per color, with native resolution up to 400 dpi in the 2C configuration.

StarFire SG1024/SA-2C Printhead key specifications and features:

• Print width: 64.96 mm (2.55 inches)

• Resolution: Up to 200 dpi

• Drop size range: 12 to 33 picoliters

• Maximum frequency: 50 kHz for 12 pl droplets, 18 kHz for 33 pl droplets

• Continuous ink recirculation with RediJet™ technology

• VersaDrop™ binary and grayscale jetting technology

• Compatible inks: UV-curable, organic solvents, and aqueous inks

• Operating temperature: Up to 50-55°C

• Nozzle spacing: 0.0635 mm (0.0025 in)

• Robust, repairable construction ideal for textile, wide format, commercial printing, and decorative applications

• Equipped with an internal heater and thermistor for precise ink viscosity control

• OEM accessible 64-byte rewritable non-volatile memory

• Includes an integral temperature sensor

• The nozzle plate is replaceable and metal, designed for resistance to abrasion and damage

• Average lifespan typically 3 to 5 years

• Supports high-speed and industrial printing needs with consistent, reliable output

This printhead is widely compatible with mainstream brands such as Epson, Roland, Mimaki, Mutoh, Ricoh, Kyocera, and Konica Minolta, making it suitable for diverse industrial printing setups.

This StarFire SG1024/SA-2C Printhead is known for high reliability, long service life, and ease of integration into high-speed scanning and single-pass industrial systems. It is suitable for applications requiring consistent print quality with two-color drops-on-demand inkjet technology.​
