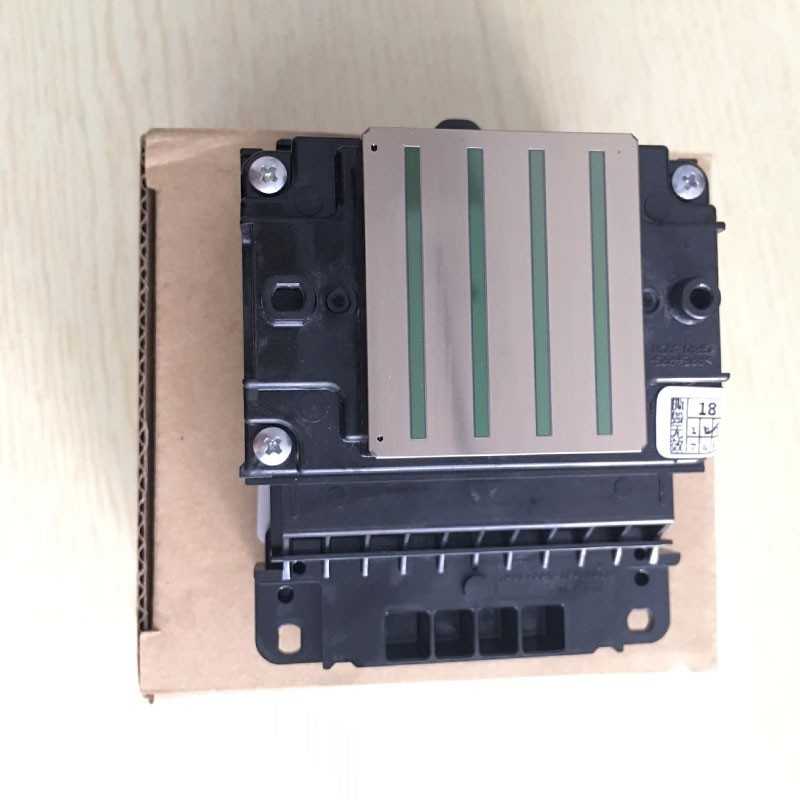

Epson 5113 Printhead - FA160210

The Epson 5113 Printhead with model number FA160210 is designed primarily for high-precision indoor printing applications. It features 8 rows of nozzles with 400 nozzles per row, totaling 3200 nozzles, making it capable of high image clarity and relatively high print speeds (up to about 20-30 square meters per hour depending on print mode). The effective print width is around 1.3 inches, which is wider than some earlier Epson printheads like the DX5 and DX7.

This printhead is typically compatible with water-based inks and sublimation inks, but it is not suitable for oil-based inks or outdoor printing. It is commonly used in Epson WorkForce Pro models such as WF-5110, WF-5113, and WF-5621.

The FA160210 printhead is usually a "locked" version for Epson printers (meaning it is coded to work with Epson machines without the need for an additional encoder card). It is recommended to maintain the printhead by replacing the ink pump every 3-4 months to ensure stable ink supply and extend printhead life.

The Epson 5113 Printhead - FA160210 key details:

• It features 8 rows of nozzles, with 400 nozzles in each row, totaling 3,200 nozzles.

• The effective printing width is approximately 1.3 inches, which is about 30% wider than previous Epson DX5 and DX7 printheads.

• Its normal working speed can reach up to 20 to 30 square meters per hour with 3-PASS high-speed printing, making it relatively fast in the industry.

• The printhead is suitable for high image clarity indoor printing and is compatible with water-based and sublimation inks but is not suitable for oil-based inks or outdoor printing.

• Resolution is typical with a native 300 dpi (some sources mention up to 1440 dpi for image quality).

• Firing frequency is about 17.8 kHz and droplet sizes can be around 1.5 to 3.5 picoliters.

• It is known for having precision and speed but accuracy slightly inferior to some other Epson models.

• The 5113 printhead has been largely replaced by newer models like the Epson 4720.

• It can be locked or unlocked; unlocked versions have specific identifier letters under the QR code, and locked heads may have limited nozzle use.

• It is mainly used in sublimation and eco-solvent printers, especially in Chinese sublimation printers.

In summary, Epson 5113 Printhead - FA160210 is a high-nozzle-count, indoor application printhead widely used for fine detailed printing in compatible Epson WorkForce Pro models, with specific ink compatibility and maintenance recommendations for optimal performance.
