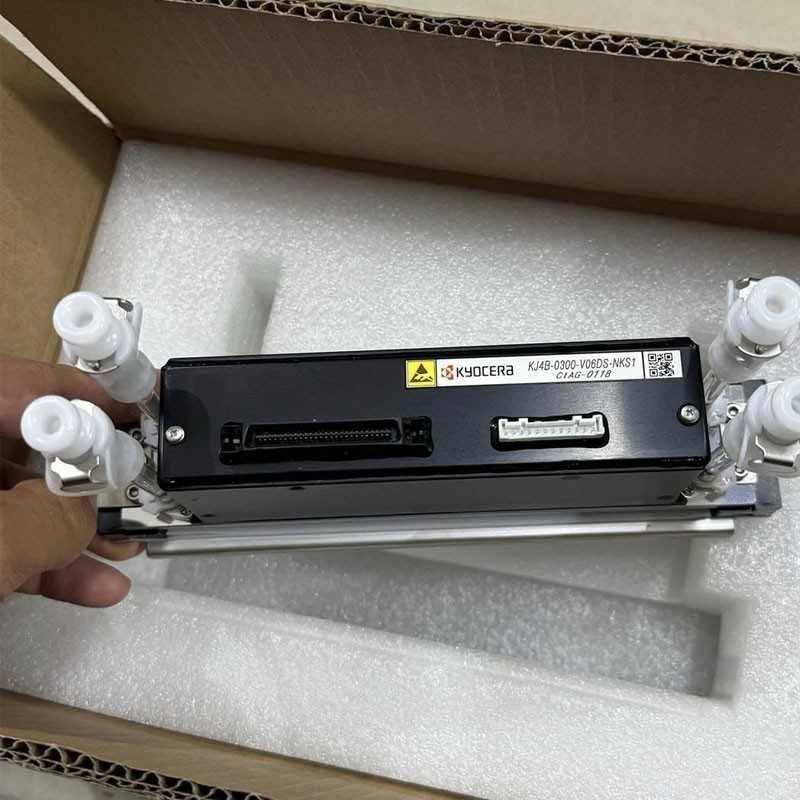

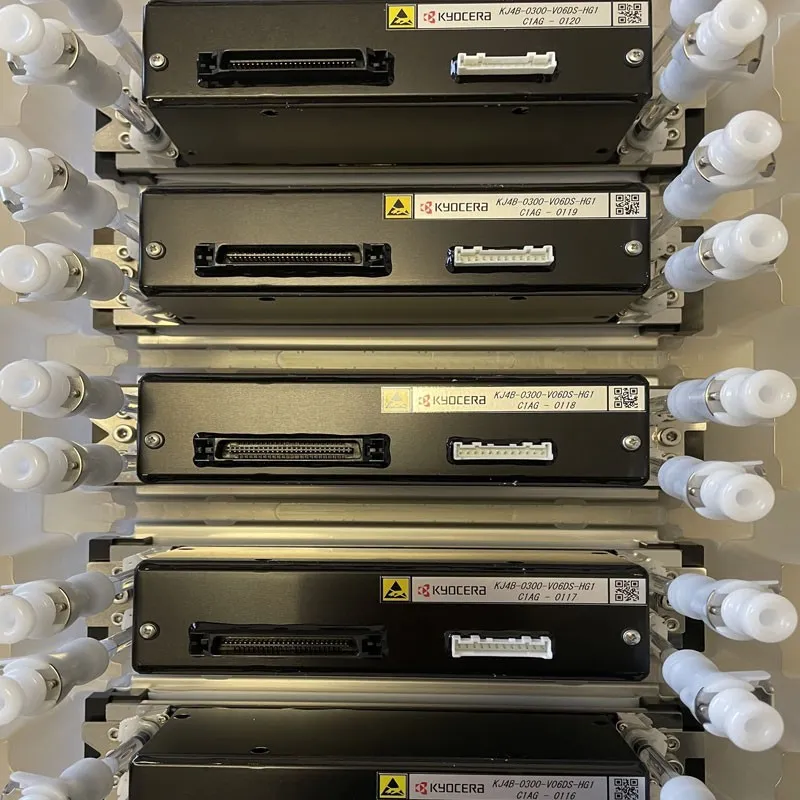

Kyocera KJ4B-0300-V06DS-HG1 Printhead

The Kyocera KJ4B-0300-V06DS-HG1 printhead is a high-speed inkjet printhead designed primarily for water-based (aqueous) inks. It features a standard resolution of 300 x 300 dpi and operates at a maximum frequency of 30 kHz, suitable for fast printing applications. The printhead has 2,656 nozzles arranged over a print width of approximately 112 mm, with a small droplet volume of around 5 picoliters (pl), enabling high-quality output at printing speeds up to 120 m/min.

Its dimensions are roughly 200 × 36 × 68.5 mm and it weighs about 540 grams. This model typically supports two colors and is compatible with printers designed for aqueous inks, often used in various industrial and commercial printing scenarios. It is made in Japan and generally comes with a manufacturer warranty but with exclusions on certain items.​

Kyocera KJ4B-0300-V06DS-HG1 Printhead Key Specifications

• Ink Type: Water-based (aqueous) ink​
• Resolution: 300 x 300 dpi (standard), with some sources noting 600 dpi capability​
• Maximum Drive Frequency: 30 kHz​
• Number of Nozzles: 2,656​
• Print Width: 112 mm (some sources list 108.25 mm or 112.35 mm)​
• Drop Volume: 5–12 pl (picoliters)​
• Dimensions: 200 × 36 × 68.5 mm​
• Dry Weight: 540 g​
• Recommended Ink Viscosity: 6.0–7.0 mPa·s​
• Print Speed: Up to 75–76 m/min

Additional Features

• Designed for high-speed, high-quality printing with stable ink supply​
• Compatible with various industrial printers, including Printerevolution T1800, T2600, T3200, FabriVu 340, Hanway Highjet 2500B, and EFI Reggiani BLAZE​
• Not interchangeable with other Kyocera printhead models; careful selection is required ​

Applications

• Textile printing
• Industrial printing
• High-speed, high-resolution printing tasks    ​

This Kyocera KJ4B-0300-V06DS-HG1 Printhead is widely used in industrial environments where reliability, speed, and print quality are essential.
