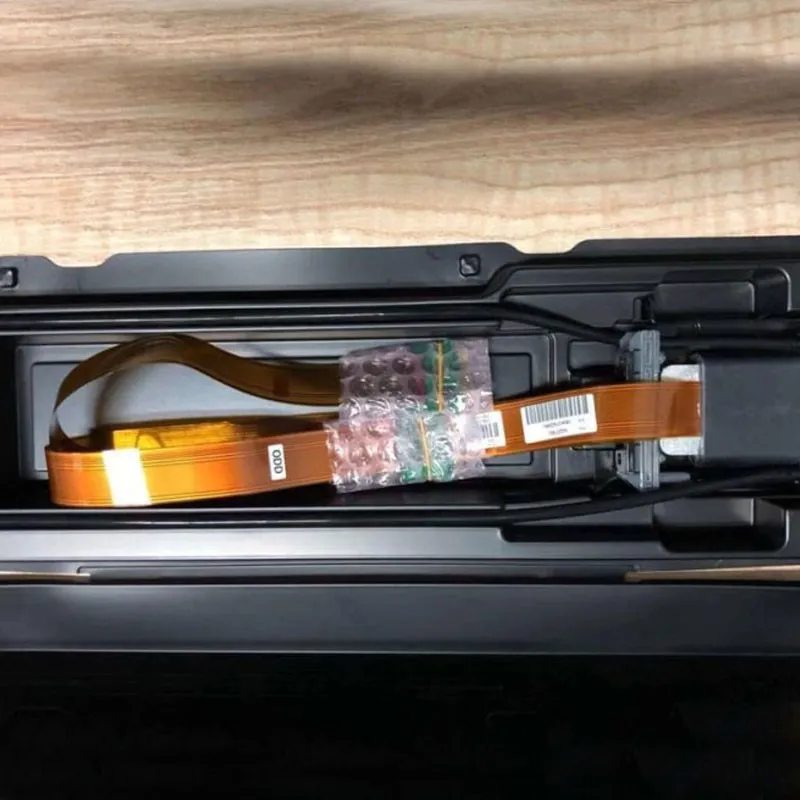

Mimaki M010010 Printhead

The Mimaki M010010 printhead is an original printhead unit assembly designed specifically for Mimaki UJF-3042 printers. It is a Ricoh Gen4 type printhead with 384 channels, capable of printing at 30 kHz and handling grayscale printing with 7 picoliter droplets. This printhead unit (part number M010010, replacing M013773) is known for providing high-quality inkjet printing with reliable and efficient performance.

It is commonly used in various Mimaki UJF-3042 series models including UJF-3042HG, 3042FX, and UJF-6042. The printhead originates from Japan and is a crucial replacement part for maintaining print quality in these printers.

Key details of the Mimaki M010010 printhead include:

• It comes as a unit assembly including a damper adapter (M014497).

• It replaces the previous part number M013773.

• Physical size dimensions are approximately 63 x 63 x 16.2 mm.

• It is a Ricoh Gen 4 type printhead with 384 channels.

• The printhead supports a frequency of 30 kHz.

• The printhead has an integrated heater and thermistor for temperature control.

• Materials used for the head include SST, Ni, and epoxy adhesive.

• Ink droplet size or resolution capability is around 7 picoliters.

• The part includes the damper adapter.

• Print resolution achievable with this head is up to 1440 x 1440 dpi, allowing for sharp and clear image output.

• This printhead is designed for high precision and durability as a UV inkjet head replacement.

• This is a genuine, original Mimaki replacement part, guaranteeing reliability and testing standards.

This Mimaki M010010 Printhead is well-suited for applications needing high-quality UV printing precision in Mimaki flatbed and hybrid printers of the UJF series.
