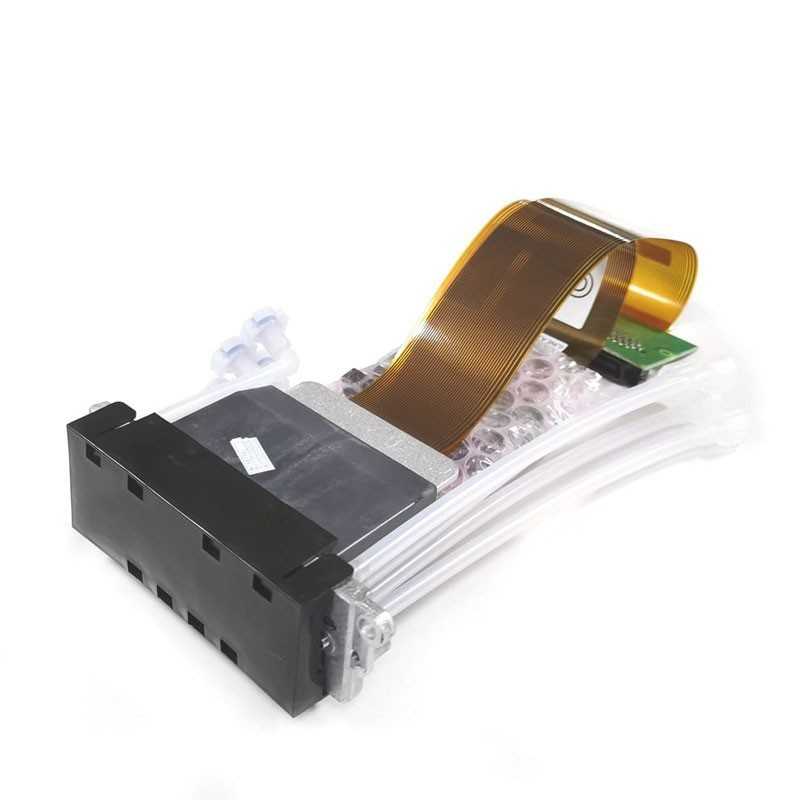

Mimaki M022625 Printhead

The Mimaki M022625 printhead is a GEN5 type printhead designed for Mimaki JFX200-2513 printers, suitable for high-speed, high-resolution industrial flatbed printing. It supports two and four color printing, 8 levels of grayscale, and features a nozzle density of up to 600 nozzles per inch (npi). The printhead has 4 x 320 nozzles with a nozzle spacing of 0.1693 mm and employs a D33 Stacked PZT piezo type. It includes an integrated heater and thermistor for temperature control, operating up to 80°C. Drop volume ranges from 7 to 35 picoliters (pl) with a native drop volume of 7 pl and a drop velocity of 7 m/s, capable of jetting frequency up to 60 kHz.

The Mimaki M022625 Printhead has a lifespan of 100 billion actuations per nozzle. This part (M022625) replaces earlier versions M017004 and M015028. When installing this new printhead, a firmware update to at least version 2.60 for JFX200-2513 printers may be required for proper functioning. Dimensions of the printhead are 89 x 25 x 69 mm excluding cables.​

Mimaki M022625 Printhead Key details:

• It supports two and four color printing with 8 levels of grayscale and a nozzle density of up to 600 npi.

• The print head has 4 x 320 nozzles with a spacing of 0.1693 mm.

• Dimensions are approximately 89 x 25 x 69 mm (excluding cables).

• It uses a D33 stacked piezoelectric actuator type.

• Temperature control is integrated via a heater and thermistor, allowing operation up to 80°C.

• Native drop volume is 7 picoliters, with a drop volume range from 7 to 35 picoliters.

• Drop velocity is around 7 meters per second with jetting frequencies up to 60 kHz.

• The life expectancy reaches 100 billion actuations per nozzle.

• The head material includes stainless steel (SST), nickel alloy, and epoxy adhesive with a coated SST nozzle plate surface.

• Installation may require printer firmware updates to versions 2.60 or later for JFX200-2513.

• This print head replaces older models M017004 and M015028.

• This is a genuine, original Mimaki replacement part, guaranteeing reliability and testing standards.

The Mimaki M022625 Printhead is designed for high-quality, high-speed printing with reliable performance for Mimaki JFX200 series UV printers.​
