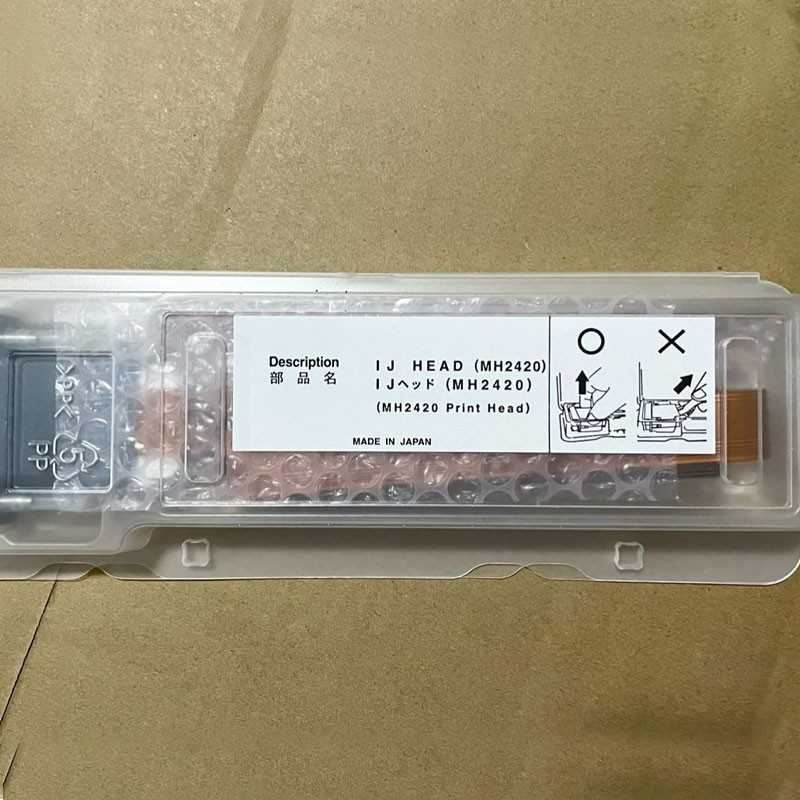

Ricoh Gen4 7-35PL Printhead (MH2420) - N220792W

The Ricoh Gen4 7-35PL Printhead (MH2420) - N220792W is suitable for a range of aqueous, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. This cable including the connector is 44 cm long. The version with short cable has been discontinued. The long cable version is used as an alternative. The printhead comes with hose barb ink inlet that can be removed in. case o-ring sealed ink inlet are required. This printhead corresponds to Ricoh part numbers N220792W, N220792S, N220792U or N220792E.

This printhead comes with the hose barbs which can easily be removed if needed.

Specifications

• Size: 63 x 62.4 x 16,2 mm (excluding cables)
• Number of Nozzles: 2 x 192 nozzles
• Nozzle Spacing within a row: 0,1693 mm
• Nozzle spacing row to row: 0.529 mm
• Temperature Control: Integrated Heater and Thermistor
• Operator Temperature range: Up to 60° C
• Drop Volume Range: Binary mode: 7pl / Grey-scale mode: 7-35 pl
• Jetting Frequency: Up to 30 kHZ
• Surface tension: 28-35nM/m
• Viscosity range: 10-12 mPas
• Grey scale: 4 levels
• Number of ink ports: 2 x dual
• Life: 100 billion actuations per nozzle
• Country of origin : Japan
• This printhead carries a manufacturer warranty.
• Cable length: 440mm
• Connection: Hose Barb
