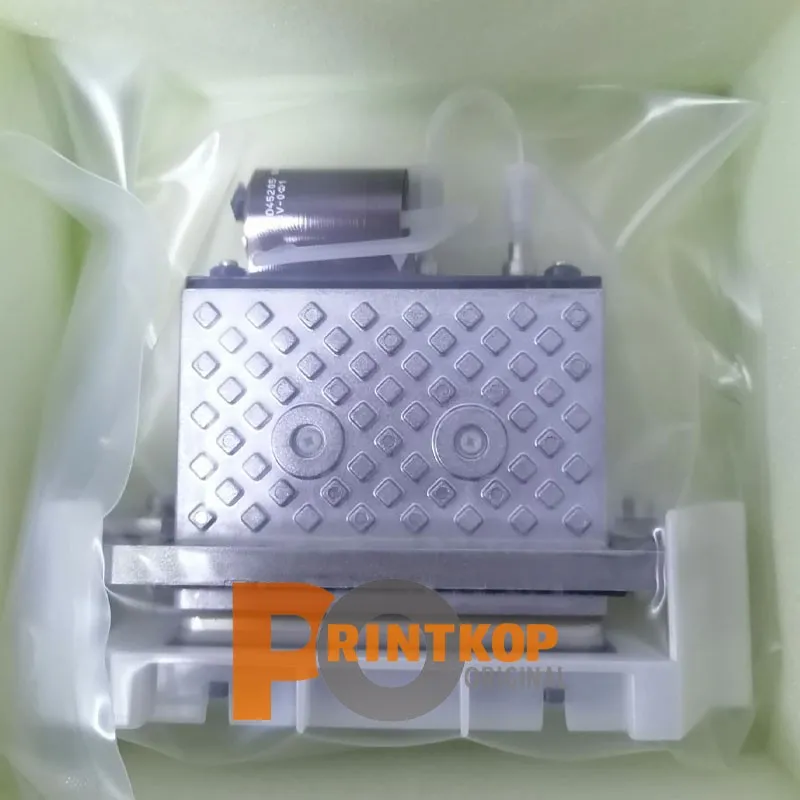

The Toshiba CF1BL Printhead is an industrial, drop-on-demand piezo inkjet printhead featuring continuous ink re-circulation through all channels. It supports a 300 npi (300 dpi) resolution across 636 nozzles and is built for heavy-duty industrial printers using UV-curing and oil-based fluids.
Item specifics
- Print Method: Drop-on-demand piezo
- Nozzles / Channels: 636
- Print Width: 53.7 mm
- Resolution: 300 dpi (84.5 micron spacing)
- Grayscale: 8 levels
- Max Dot Frequency: 4.8 kHz
- Compatible Inks: UV-curing and oil-based fluids
- Country/Origin: Japan (Manufactured at official Toshiba Tec facility)
Compatible printer models
The Toshiba CF1BL is an industrial OEM printhead used primarily in high-end UV flatbeds and single-pass industrial label/packaging presses, includes:
- Mimaki UJF-7151 Plus
- Mimaki UJF-7151 Plus II
Important Notice
To prevent costly buyer return requests, it is critical to explicitly state what this head does NOT fit:
Do not buy this printhead if you own any of the machines listed below. It looks identical on the outside, but the internal electronics are totally different and will not work.
- Other CF1 Models: Does NOT replace CF1B or CF1BXL (different voltages).
- Other Toshiba Heads: Does NOT replace CE4, CE4M, CF3, or CA4 models.
- Thermal Printers: Does NOT fit any Toshiba Barcode/Label Printers (this is an inkjet head).
Not sure? Send us a quick photo of your current printhead's factory part code sticker before buying, and we will verify the fit for you!
Condition & Packaging
- Condition: New
- Packaging: Factory sealed in original Toshiba packaging
- Handling: Do not open the printhead package until you are ready to install. Avoid touching the nozzle plate or electrical contacts. Store in a cool, dry place, away from direct sunlight and extreme temperatures.
Shipping
- Handling Time: We ship within 1–2 business days after cleared payment.
- Shipping Service: Shipped via FedEx / DHL / Local courier with tracking.
- Packaging: Printhead is packed securely with protective materials to prevent damage during transit.
- Combined Shipping: We offer combined shipping on multiple items. Please message us before payment for a revised invoice if you are purchasing more than one item.
- International Shipping: Available, shipped via FedEx / DHL / Local courier with tracking. Import duties, taxes, and customs charges are the buyer’s responsibility and are not included in the item price or shipping cost.
Returns
- Return Window: Returns accepted within 14 / 30 days of delivery.
- Condition for Return: Item must be unused, unopened, and in original factory-sealed packaging. Once the printhead packaging is opened or the head is installed, it cannot be returned unless it is proven to be dead on arrival (DOA) and not damaged by improper handling or installation.
- Return Shipping: Buyer pays return shipping unless the item is not as described or is DOA and confirmed by us.
- Refund: Refund issued for the item price once the returned item is received and inspected. Original shipping charges are non-refundable unless the return is due to our error.
Please contact us before initiating a return so we can provide instructions and, if applicable, an RMA number.
Warranty
- Seller Warranty: This item is sold as new, factory sealed. We do not provide an additional seller warranty beyond the return policy described above.
- Manufacturer Warranty: Any manufacturer warranty is subject to Toshiba’s policies and may require proof of purchase from an authorized distributor. We are an authorized Toshiba Distributor - please message us if you have specific warranty questions.
- DOA Policy: If the printhead is confirmed dead on arrival (no electrical shorts caused by the user, proper installation, and compatible electronics), we will replace or refund according to our return policy. Damage caused by incorrect installation, incompatible electronics, wrong ink, static discharge, or physical damage is not covered.
Important Handling & Safety Notes
- Do not open the printhead until you are ready to install it.
- Follow your printer manufacturer’s installation and priming procedures exactly.
- Ensure your ink system, temperature settings, and waveforms are configured for the Toshiba CF1BL Printhead.
- Avoid touching the nozzle plate, filter, or electrical contacts.
- Store in a clean, dry environment, away from dust, direct sunlight, and temperature extremes.
