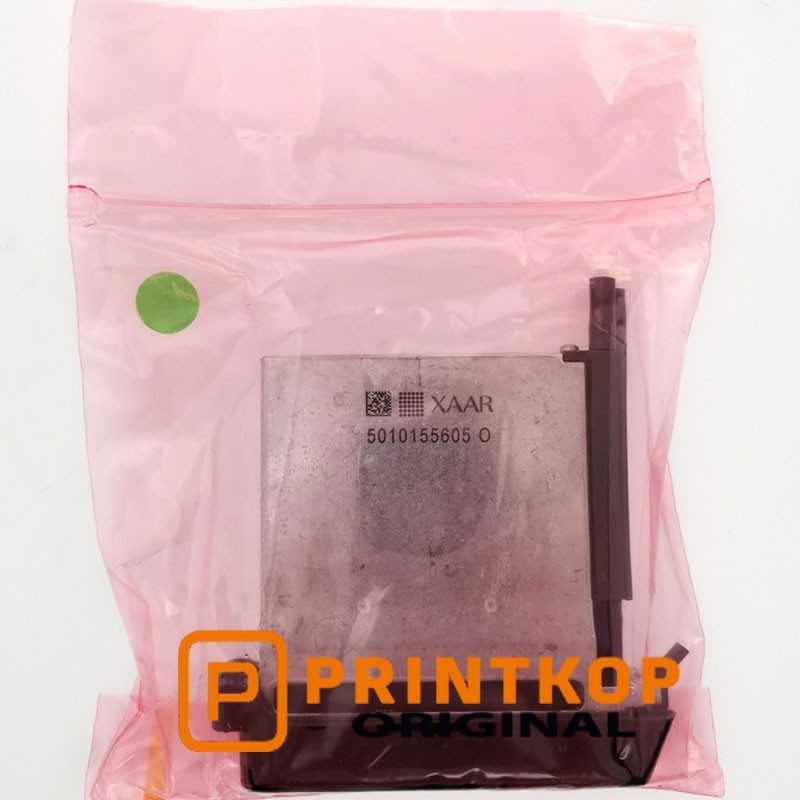

Xaar 502 GS15 S180 Printhead

Reach higher levels of performance in Wide-Format Graphics (WFG) with the Xaar 502 GS15 S printhead. Whether printing large exterior banners or indoor point-of-sale material, this premium printhead delivers exceptional print quality, excellent reliability and high production up-time.

The unique PrecisionPlus architecture of the Xaar 502 printhead family builds on Xaar’s incredibly successful Hybrid Side Shooter architecture, proven in the market-leading Xaar 1003 printhead. This new architecture optimises the actuator performance giving more uniform drop formation and stability across the print swathe and therefore exceptional print quality for stunning graphics.

Print service providers will appreciate the even, flat tints and sharp text achievable with the Xaar 502 GS15S. For OEMs the remarkable uniform print swathe allows printheads to be mounted together easily. This, along with a combination of other innovative features, ensures trouble-free integration, fast time-to-market and short servicing times.

Product Specifications

• Physical attributes: Xaar 502 GS15 S180
• Active nozzles: 500
• Print swathe width (mm): 70.5
• Number of rows: 1
• Nozzle pitch (µm): 141.1
• Nozzle density (nozzles per inch): 180
• Nozzle stagger (µm): 47
• Nozzle guard: WFG
• Printhead weight (dry) (g): 208
• Ink type: Solvent
• Drop volume* (pL): 15 to 70
• Drop velocity* (m/s): 5
• Number of grey levels*: 6
• Typical firing frequency* (kHz): 7
• Dimensions (WxDxH) (mm): 104 x 17 x 113

* Dependent on ink used and system integration
