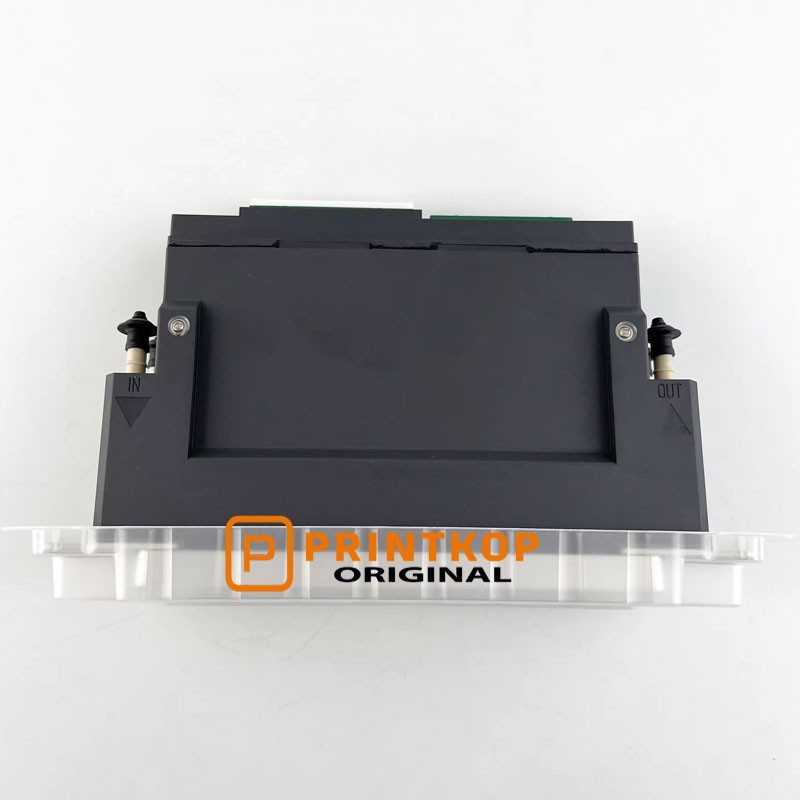

Seiko SPT RC1536L Printhead 25-225pl Original Industrial Inkjet Head

Original Seiko SPT RC1536L printhead with 1536 active nozzles, 360 npi native resolution, and support for oil-based, UV, solvent, and water-based inks. Built for high-speed industrial printing with stable performance and wide application compatibility.

Key Features

•     Original Seiko SPT RC1536L printhead.
•     Drop volume range: 25 to 225 pL.
•     1536 active nozzles in 4 rows.
•     Native nozzle resolution: 360 npi.
•     Jetting frequency up to 37 kHz.
•     Maximum productivity: 2,477 µL/sec at 10 drops.
•     Supports vertical and horizontal print directions.
•     Compatible with oil-based, UV, solvent, and water-based inks.
•     Print width: 108.3 mm.
•     Parallel interface.

Specifications

•     Model: RC1536L / RC1536-L.
•     Brand: Seiko SPT / SII Seiko.
•     Drop Volume Range: 25 to 225 pL.
•     Productivity: 2,477 µL/sec at 10 drops.
•     Greyscale Levels: Up to 10.
•     Jetting Frequency: Up to 37 kHz.
•     Native Resolution: 360 npi.
•     Active Nozzles: 1536.
•     Nozzle Rows: 4.
•     Ink Inlets/Outlets: 1/1.
•     Ink Compatibility: Oil, UV, solvent, water-based.
•     Print Width: 108.3 mm.
•     Weight: Over 0.7 kg.
•     Dimensions: 180.0 x 47.6 x 123.3 mm.
•     Interface: Parallel.
•     Country of Origin: Japan.

Applications

• Suitable for industrial printing systems used in ceramic printing, corrugated cardboard, textiles, glass, printed circuit boards, and similar large-format or specialty printing applications.
• Notes
• It is recommended to replace the head cables together with a new printhead for best performance and reliability.
