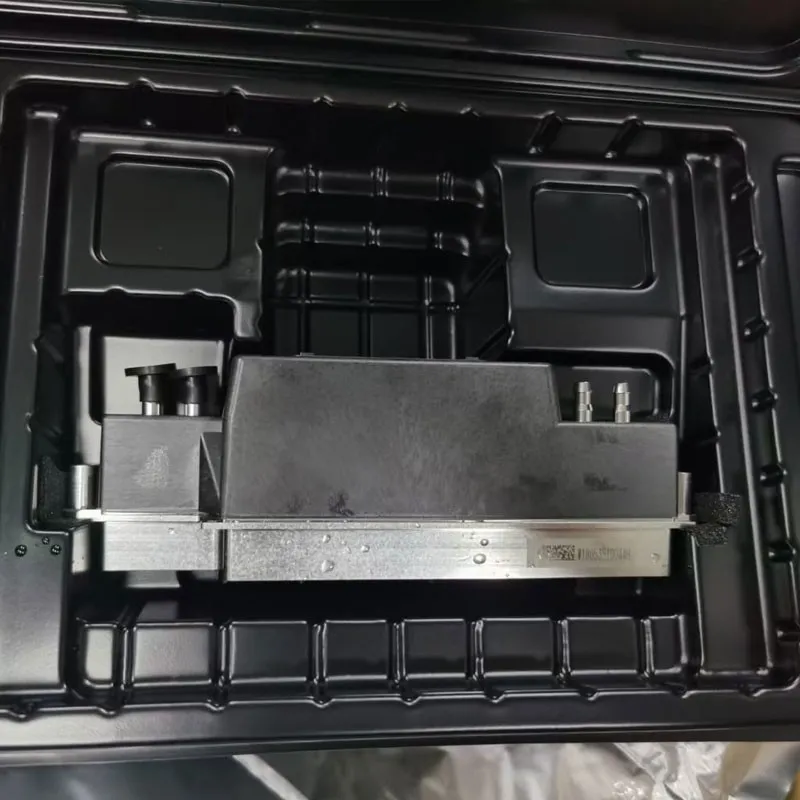

Epson S3200-U1 Printhead

The Epson S3200-U1 printhead is a PrecisionCore MicroTFP printhead designed for UV and eco-solvent inks. It features 3200 nozzles arranged in 8 lines with 400 nozzles per line, delivering a dual-row nozzle resolution of 600 dpi (300 dpi per row). The printhead has dimensions of 150.4 x 30 x 52 mm and weighs about 235 grams. It provides an effective print width of 120.2 mm (4.73 inches) and operates with a jetting frequency of up to 48 kHz, capable of ejecting droplets sized 3.2, 5, or 10 picoliters. The nozzle pitch is 1/300 inch with 2 nozzle rows, supporting up to 2 color inks. It incorporates an ink circulation mechanism for stable ink flow and improved reliability and durability. The S3200-U1 is suitable for high quality and high productivity printing in industrial and commercial applications, especially those needing UV or eco-solvent inks.

It is recommended to replace the head cables when installing a new S3200-U1 printhead to ensure proper compatibility and function. The printhead is especially fitting for small-format scanning printing equipment and single-pass printing with some considerations for color density due to nozzle configuration.

Epson S3200-U1 Printhead Key specifications:

• Ink type: UV/Eco Solvent

• Printhead type: PrecisionCore MicroTFP

• Dimensions: 150.4 × 30.0 × 52.0 mm

• Weight: 235 g

• Number of nozzles: 3200 total (net usable nozzles: 2840)

• Nozzle pitch and rows: 1/300 inch nozzle pitch, with 2 rows of nozzles

• Nozzle resolution: 300 npi per row, 600 npi combined for 2 rows

• Effective print width: 120.2 mm (4.73 inches)

• Maximum color inks: 2 colors

• Droplet volumes: Binary at 9 picoliters at 48 kHz; 4 levels of grayscale at 3.2, 5, 10 picoliters at 24 kHz

• Ink viscosity range: 8 to 11 mPa.s

• Features include an ink circulation mechanism and common channel recirculation to maintain performance

• Utilizes Epson's Variable Sized Droplet Technology (VSDT) for smooth gradation and consistent droplet size

• The printhead is suitable for economical small-format scanning printers and is designed for multi-head configurations for higher speed and color capability

• It also incorporates a positioning mechanism with reference holes for easy and precise replacement

Overall, the Epson S3200-U1 Printhead is a precise, high-resolution printhead optimized for UV and eco-solvent inks with excellent durability and head expandability for industrial printing environments.
