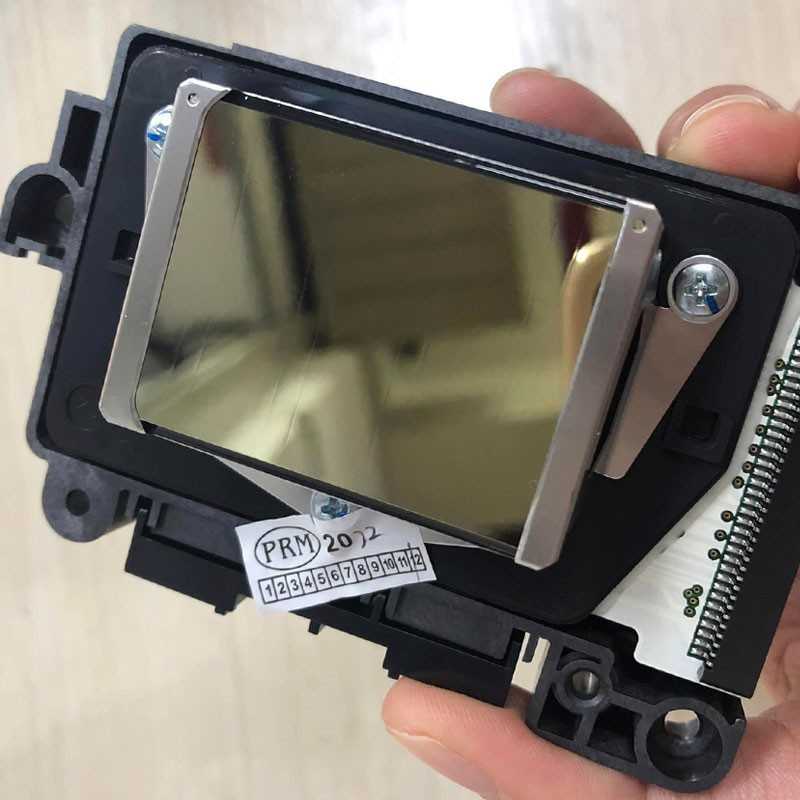

Epson DX7 Printhead First coded - F189010

The Epson F189010 printhead "first coded" (also known as 1st coded) is an original Epson DX7 solvent-resistant printhead model designed for certain solvent-based Chinese DX7 printers manufactured after the end of 2013. It features 8 channels with 180 nozzles each, supporting a native resolution of 1440 dpi, a droplet size range from 1.5 to 21 picoliters, and firing frequency of 8 kHz. The 1st coded version is locked to specific printer control boards installed post-2013, and is one of three versions available: not coded, 1st coded, and 2nd coded.

The first coded heads have circuit board IDs that start with the letter G or letters following G, and the first four digits on the board are under 1530, indicating the older coding compared to the 2nd coded version. It is important to confirm that the printer’s existing printhead is 1st coded before installing this model, and changing head cables along with the printhead is recommended for optimal compatibility and performance. This Epson DX7 Printhead First coded - F189010 is compatible with eco-solvent and mild solvent inks and serves printer models such as those by Sanyi Tech, MeiTu MT-StarJet series, and others made post-2013.​

Epson DX7 Printhead First coded - F189010 Key Details:

• Model Number: F189010 (First Coded)​
• Compatibility: It is suitable for solvent and mild solvent inks, and compatible with various printers such as Sanyi Tech Starjet 7702L, Wit-Color Ultra 9200, MeiTu MT-StarJet series, and others.​
• Design Features: It has a firing frequency of 8 kHz, with droplets ranging from 1.5 to 21 pico liters, and features 8 channels, each with 180 nozzles.​
• Installation Notes: It is recommended to replace head cables alongside the head and use proper installation procedures to avoid damage.    ​

Identification

• The head ID starts with G or letters after G, and the first four digits of the head circuit board are less than 1530, indicating its "first coded" status.​
• The head type cannot be confirmed solely by the ID; verifying if the old printhead is "1st coded" before installing is crucial.

Summary:

The F189010 first coded printhead is a high-quality, solvent-resistant model tailored for specific Chinese DX7 printers made after 2013, distinguished by its technical features and compatible printer models. Proper identification involves checking the head ID and compatibility with existing printer control boards.
