Epson T3200-U3 Printhead - FA8200S

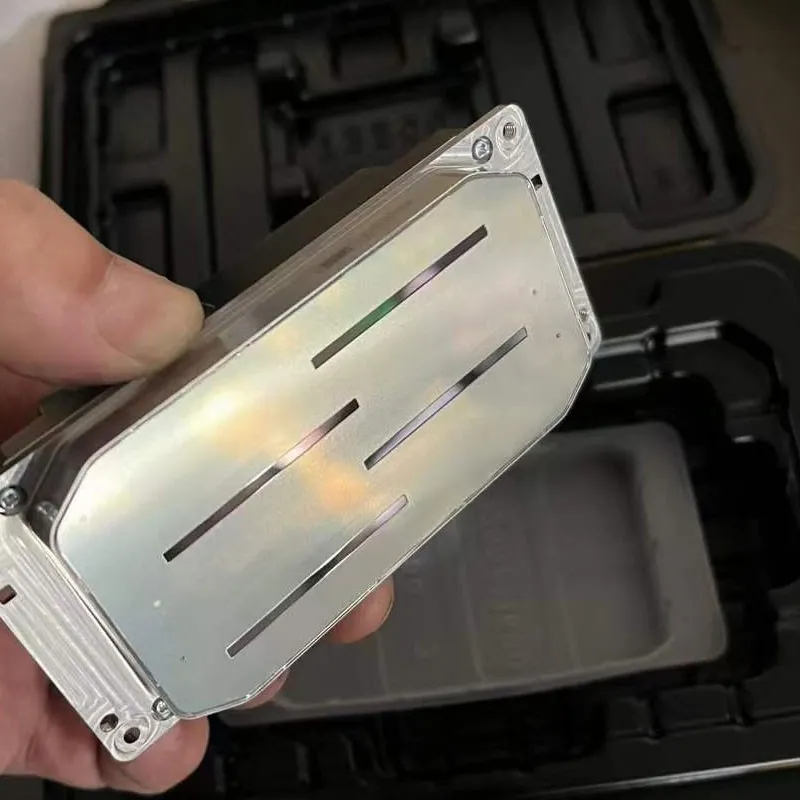

The Epson T3200-U3 printhead is a high-quality PrecisionCore MicroTFP printhead designed for UV ink. It features 3200 nozzles (net 3176) arranged in 4 rows, with nozzle resolutions of 300 npi per row and 600 npi across 2 rows. The printhead supports four-color CMYK printing simultaneously from a single head, eliminating the need for multiple two-color heads for four-color prints. It has an effective print width of 67.2 mm (2.65 inches), allowing faster printing speeds without quality loss due to a piezoelectric actuator that can eject larger droplets at higher frequencies.

Notably, the T3200-U3 includes a built-in heater that stabilizes drop ejection and allows printing with high-viscosity UV inks, making it especially useful for signage and product packaging applications. It weighs 328 grams and measures about 113.4 × 52.0 × 30.4 mm. The nozzle pitch is 1/300 inch.

Epson T3200-U3 Printhead - FA8200S Key details include:

• Printhead type: PrecisionCore MicroTFP

• Ink type: UV

• Nozzle count: 3200

• Nozzle rows: 4

• Resolution: 300 npi per row, 600 npi for 2 rows

• Max color inks: 4 (CMYK)

• Effective print width: 67.2 mm

• Built-in heating device for viscous inks

• Droplet volume: Binary 7.5 pl at 48 kHz; 4-level grayscale available

• Dimensions: 113.4 × 52 × 30.4 mm

• Weight: 328 g

The Epson T3200-U3 Printhead - FA8200S is designed for high-speed, high-quality four-color digital printing with ease of installation and color alignment, ideal for commercial signage and packaging
