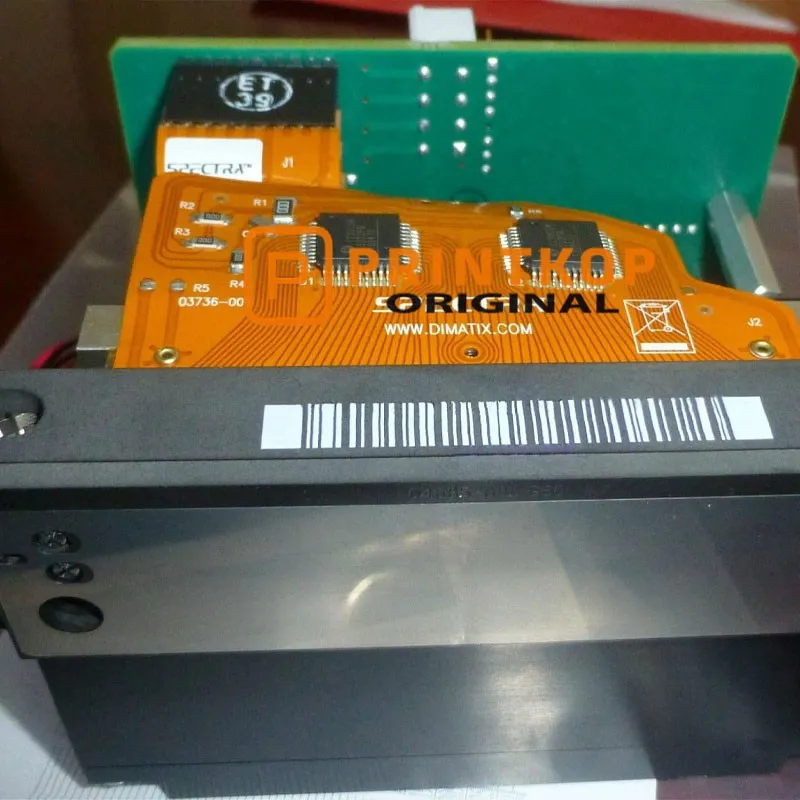

The Spectra Galaxy PH 256/80 HM Printhead is a high-performance 256-channel industrial piezoelectric inkjet printhead. It is specifically built for hot melt (phase-change) printing applications, delivering an 80 picoliter calibrated drop size at resolutions up to 450 dpi.
Item specifics
Brand: Fujifilm Dimatix
MPN: PH 256/80 HM
Number of Addressable Jets: 256 active nozzles arranged in a single inline row.
Calibrated Drop Size: 80 picoliters (pL) with an adjustment range of 75 to 85 pL.
Compatible Fluids: Hot melt (phase-change) industrial jetting fluids.
Operating Temperature Range: Heated up to 125°C (257°F).
Fluid Viscosity Range: 8 – 20 cP at jetting temperature.
Integrated Filter: 8 microns absolute retention.
Meniscus Vacuum: 6.3 – 8.7 mBar (2.5 – 3.3 in. wg) to prevent nozzle weeping.
Lung Vacuum: 750 mBar (22 in. Hg gauge) for external deaeration via patented Dimatix lung technology.

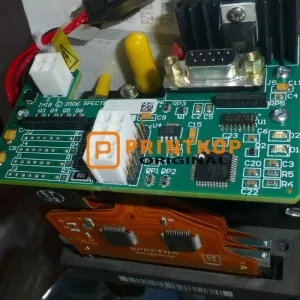

Electrical Interface: RS-422 protocol with serial-to-parallel converters.
Data Streams: Two serial streams daisy-chained via the Head Interface Board.
Country/Origin: Japan
Compatible printer models
The Spectra Galaxy PH 256/80 HM Printhead is not used in normal picture or poster printers. It is used in heavy-duty factory packaging machines that print on boxes using melted wax ink. The primary systems and setups that utilize this printhead line include:
Markem-Imaje 5200
Markem-Imaje 5400
Markem-Imaje 5800
Busch Addressing Systems
Graphline High-Speed Mailing Systems
Scitex Digital Systems (Legacy variable data lines)
Kodak Versamark Systems (Custom hot-melt configurations)
Important Notice
To prevent costly buyer return requests, it is critical to explicitly state what this head does NOT fit:
Do not buy If your old printhead does not say PH 256/80 HM on the sticker. It looks identical on the outside, but the internal electronics are totally different and will not work.
Home & Office Printers: Will not fit HP, Canon, Epson, or Xerox desk printers.
T-Shirt & Fabric Printers: Will not fit clothing printers like the Brother GTX or Mimaki TS.
Banner & Sign Printers: Will not fit modern banner machines like the Roland TrueVIS or HP Latex.
Newer Factory Printers: Will not fit machines made for Dimatix StarFire or Polaris heads.
If your printer uses liquid ink from a bottle, cartridge, or pouch, this head will not work. It only works in machines that use solid, hard wax blocks.
Not sure? Send us a quick photo of your current printhead's factory part code sticker before buying, and we will verify the fit for you!
Condition & Packaging
Condition: New
Packaging: Factory sealed in original Toshiba packaging
Handling: Do not open the printhead package until you are ready to install. Avoid touching the nozzle plate or electrical contacts. Store in a cool, dry place, away from direct sunlight and extreme temperatures.
Shipping
Handling Time: We ship within 1–2 business days after cleared payment.
Shipping Service: Shipped via FedEx / DHL / Local courier with tracking.
Packaging: Printhead is packed securely with protective materials to prevent damage during transit.
Combined Shipping: We offer combined shipping on multiple items. Please message us before payment for a revised invoice if you are purchasing more than one item.
International Shipping: Available, shipped via FedEx / DHL / Local courier with tracking. Import duties, taxes, and customs charges are the buyer’s responsibility and are not included in the item price or shipping cost.
Returns
Return Window: Returns accepted within 14 / 30 days of delivery.
Condition for Return: Item must be unused, unopened, and in original factory-sealed packaging. Once the printhead packaging is opened or the head is installed, it cannot be returned unless it is proven to be dead on arrival (DOA) and not damaged by improper handling or installation.
Return Shipping: Buyer pays return shipping unless the item is not as described or is DOA and confirmed by us.
Refund: Refund issued for the item price once the returned item is received and inspected. Original shipping charges are non-refundable unless the return is due to our error.
Please contact us before initiating a return so we can provide instructions and, if applicable, an RMA number.
Warranty
Seller Warranty: This item is sold as new, factory sealed. We do not provide an additional seller warranty beyond the return policy described above.
Manufacturer Warranty: Any manufacturer warranty is subject to Fujifilm Dimatix’s policies and may require proof of purchase from an authorized distributor. We are an authorized Fujifilm Dimatix Distributor - please message us if you have specific warranty questions.
DOA Policy: If the printhead is confirmed dead on arrival (no electrical shorts caused by the user, proper installation, and compatible electronics), we will replace or refund according to our return policy. Damage caused by incorrect installation, incompatible electronics, wrong ink, static discharge, or physical damage is not covered.
Important Handling & Safety Notes
Do not open the printhead until you are ready to install it.
Follow your printer manufacturer’s installation and priming procedures exactly.
Ensure your ink system, temperature settings, and waveforms are configured for the Spectra Galaxy PH 256/80 HM Printhead.
Avoid touching the nozzle plate, filter, or electrical contacts.
Store in a clean, dry environment, away from dust, direct sunlight, and temperature extremes.
