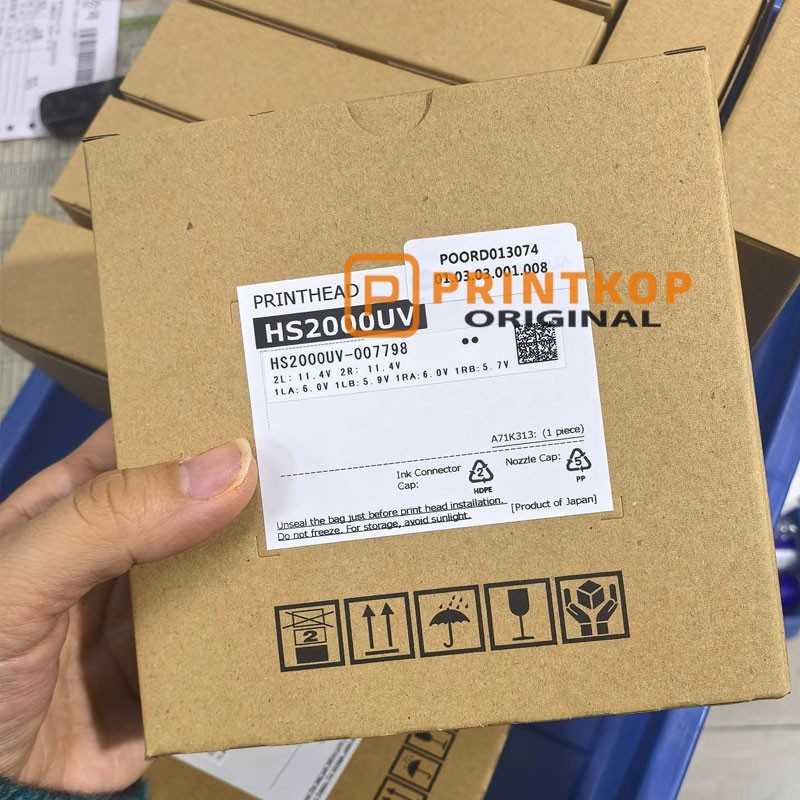

Konica KM HS2000 Printhead

The Konica KM HS2000 printhead is a high-performance shear-mode, piezo on-demand printhead designed for high-speed single-pass inkjet systems. It features 1024 nozzles arranged as 256 nozzles per line across 4 lines, with a native resolution of 360 dpi and a droplet size of 6 picoliters. Its maximum firing frequency is 56 kHz, allowing it to achieve high-speed, high-quality printing with up to 8 grayscale levels.

The printhead supports UV, oil, and solvent inks and has an integrated heater. Its print width is 72 mm, and it weighs approximately 150 grams with dimensions of around 131 mm by 18 mm by 94 mm. It employs an All-nozzle Independent Drive System and is suitable for applications requiring rich grayscale and precise image quality. Users should handle it carefully to avoid damage to the printhead circuit board and follow the manufacturer's recommended installation steps and ink supply system.

Konica KM HS2000 Printhead key details:

• Technology: Shear mode, piezo on-demand with an All-nozzle Independent Drive System

• Nozzles: 1024 total (256 nozzles x 4 lines)

• Droplet Size: 6 picoliters

• Print Width: 72 mm

• Native Resolution: 360 dpi (90 dpi x 4 lines)

• Firing Frequency: Maximum of 56 kHz (some sources say up to 60 kHz)

• Ink Compatibility: UV, oil, and solvent inks

• Heater: Integrated

• Grey-scale: 8 levels for higher precision and richer grayscale images

• Dimensions: Approximately 131 mm wide x 18 mm deep x 94 mm high

• Weight: Approximately 150 grams

This Konica KM HS2000 Printhead is suitable for high-speed, single-pass system inkjet printers requiring rich grayscale levels and precise image quality. It supports multi-line printing and high-frequency firing, making it ideal for demanding industrial inkjet applications.
