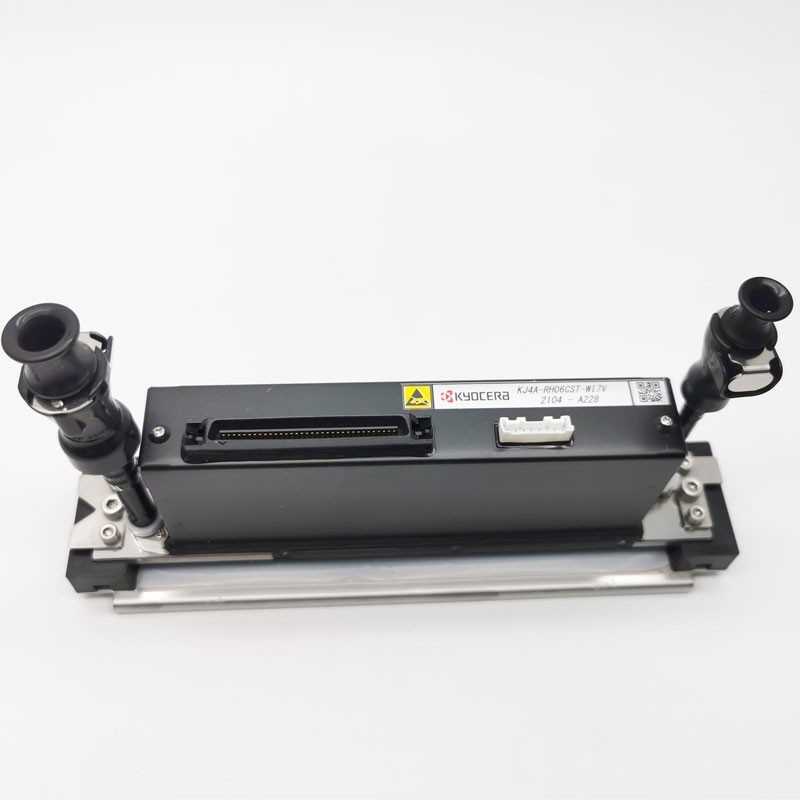

The Kyocera KJ4A-RHO6CST-HG7V (typically written as KJ4A-RH06CST-HG7V) is a high-speed UV inkjet printhead from Kyocera's KJ4A-RH series, designed for single-pass and multi-pass industrial printing applications.
| Attribute | Value |
|---|---|
| Resolution | 600 dpi × 600 dpi |
| Nozzles | 2,656 total (2,558 effective) |
| Print Width | 108.25 mm effective swathe |
| Ink Type | UV ink only |
| Max Drive Frequency | 30 kHz |
| Drop Volume | 3–14 pl (minimum 5 pl at 70 m/min) |
| Print Speed | Up to 76.2 m/min |
| Nozzle Pitch | 0.042 mm |
| Dimensions | 200 × 30.5 × 69.1 mm |
| Ink Viscosity | 5.0–6.0 mPa·s (recommended) |
Built-in heater compensates for ambient temperature changes
Built-in filter removes foreign particles
Unique ink supply design ensures stable jetting and reduces non-jetting during continuous printing
The HG7V suffix indicates a specific ink viscosity variant within the KJ4A-RH06CST family (other variants include STDC, MO1V, WI7V, JH7V)
This printhead is used in large-format UV printers such as the Dilli Neo Sun FB2513-04 D-WX and Gandi Digital Gladi8tor.
