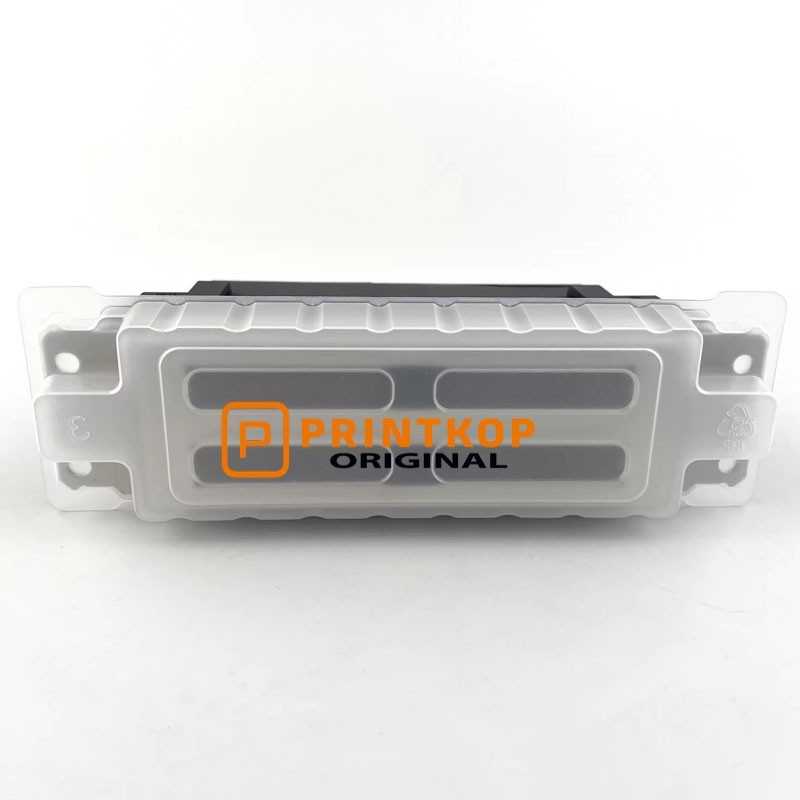

Seiko RC1536L 25-225pl UV Printhead

Key Features

•     Brand: Seiko Instruments (SPT)
•     Model: RC1536L
•     1536 active nozzles arranged in 4 rows for high-throughput printing.
•     Native resolution: 360 nozzles per inch (npi).
•     Print width: 108.3 mm per head.
•     Greyscale capability: Up to 8 levels, enabling smooth tonal transitions and variable dot control.
•     Maximum jetting frequency: Up to 37 kHz (isolated channel technology).
•     Maximum productivity: 2,477 µL/sec per head at 10-drop greyscale.
•     Real ink recirculation directly behind the nozzles to prevent clogging, clear air bubbles, and reduce maintenance.
•     Wide viscosity tolerance and robust performance with UV and oil-based inks.
•     Low-voltage operation and parallel driving interface for easy integration into industrial systems.
•     Ink Type Compatibility: UV, Oil-based (Solvent & Aqueous under development)
•     Condition: New / Original (as applicable)

Technical Specifications

•     Active nozzles: 1536
•     Nozzle rows: 4
•     Nozzle density: 360 npi
•     Drop volume: 25–225 pL (RC1536L variant).
•     Grey levels: 8
•     Jetting frequency: Up to 37 kHz.
•     Jetting velocity: ~7 m/s (at 3 mm standoff, ink-dependent).
•     Maximum flow rate: 2,477 µL/sec per head.
•     Ink inlets/outlets: 1 / 1 (recirculating design).
•     Print width: 108.3 mm.
•     Dimensions: 180.0 × 47.6 × 123.3 mm.
•     Weight: < 700 g (printhead only).
•     Interface: Parallel.
•     Recommended inks: UV, oil-based; solvent/aqueous options under development.

Typical Applications

Ideal for high-speed, high-deposition industrial printing on:

•     Ceramics, glass, wood
•     Corrugated cardboard and packaging
•     Textiles and home furnishings
•     Coatings, varnishes, functional layers
•     Coding & marking
•     Additive manufacturing / 3D printing.

Compatibility Notes

Commonly used in wide-format LED-UV line-head systems, including platforms such as:

•     EFI Vutek Nozomi 18000+ LED (reference platform).

Always verify waveform, ink, and mechanical integration with your system integrator or OEM.

Why Choose the RC1536L?

•     Highest productivity in the RC1536 family (2,477 µL/sec).
•     Excellent reliability thanks to real-time ink recirculation and isolated channel design.
•     Flexible greyscale from 25 pL up to 225 pL for both fine detail and heavy coverage
