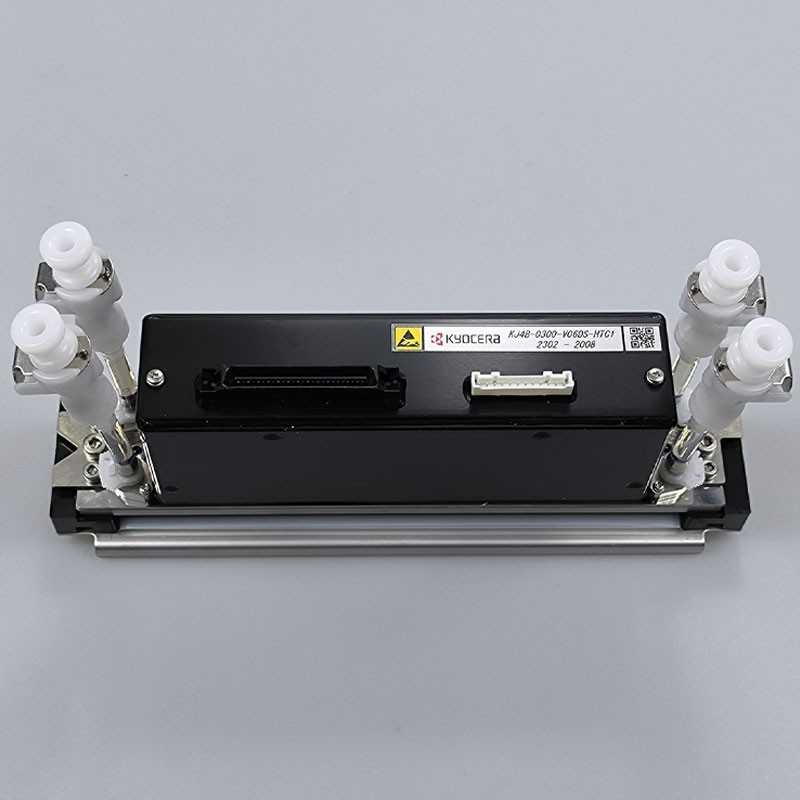

Kyocera KJ4B-0300-R06DS-HTC1 Printhead

The Kyocera KJ4B-0300-R06DS-HTC1 printhead is a high-speed inkjet printhead designed for water-based inks. It features a resolution typically at 600 dpi with a maximum drive frequency of 30 kHz, enabling it to deliver high-quality prints with a small drop volume of around 5 picoliters. The printhead contains 2,656 nozzles arranged across an effective print width of approximately 112 mm, with a nozzle pitch around 0.042 mm. It operates at print speeds up to about 75-76 meters per minute.

Key physical dimensions are about 200 mm in width, 36 mm in depth, and around 61-68.5 mm in height, with a dry weight close to 540-580 grams. This printhead is notable for its stability in ink supply due to its advanced ink channel design and internal features such as internal filters and heaters to maintain performance and reliability. It is compatible with various industrial printers like Printerevolution T1800 and EFI Reggiani BLAZE, among others.

Kyocera KJ4B-0300-R06DS-HTC1 Printhead Key specifications:

• Resolution: 600 dpi

• Maximum drive frequency: 30 kHz

• Number of nozzles: 2,656 nozzles arranged across a print width of about 108.25 mm to 112 mm

• Droplet volume: Ranges between 5 to 18 picoliters depending on variant

• Maximum printing speed: Up to 120 meters per minute

• Ink type compatibility: Water-based inks

• Print width: Approximately 108 to 112 mm

• Dimensions: Around 200 x 36 x 61 mm

• Weight: About 540 to 580 grams

• Equipped with internal filters to prevent clogging and an internal heater to regulate temperature

• Suitable for use in direct-to-textile fabric printers and other high-speed single-pass printers

• Country of origin: Japan

This Kyocera KJ4B-0300-R06DS-HTC1 Printheadis available in multiple versions tailored for different printer models including standard, MS printers, and EFI Reggiani printers, with each version including printhead cables as needed. It is crucial to select the correct model as they are not interchangeable. The printhead supports high printing quality with small droplet volumes and high frequency for industrial applications.

Installation should be done by professionals, and care should be taken to ensure compatibility with the printer model before purchase or installation.
