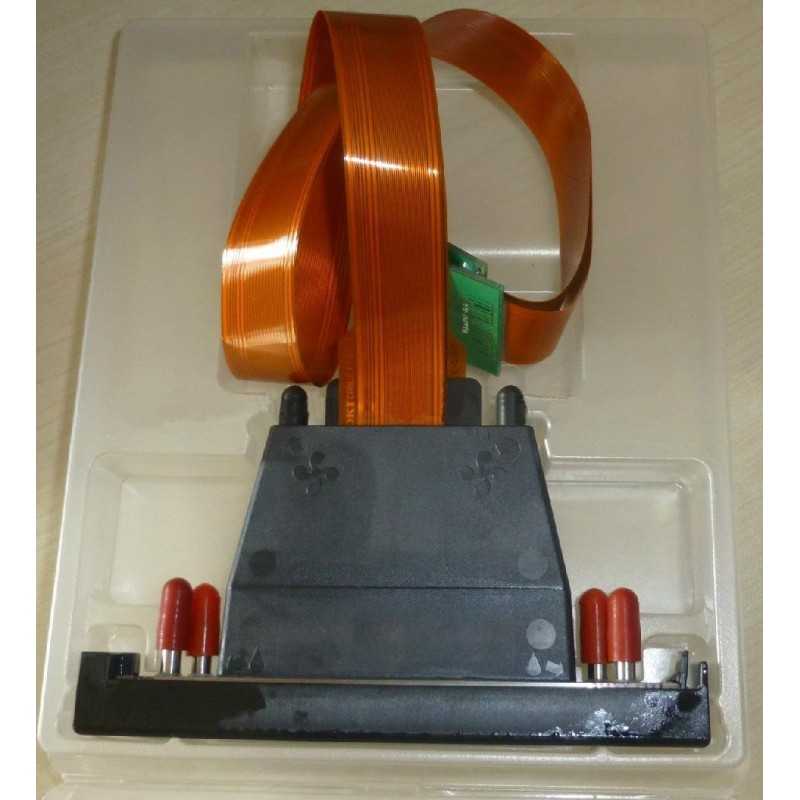

Ricoh GEN4L 15PL Printhead (Hose barb) - MH2620

The Ricoh GEN4L 15PL Printhead (Hose barb) - MH2620 is suitable for a range of oil, water, solvent and UV printers, including the original D.Gen Teleios Grande, D.Gen Teleios (TJ-2600) and Teleios (TJ-3333). This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty.

This printhead is not compatible with the newer D.Gen Teleios Grande G5 or Teleios Grande/H6. These printers use Ricoh GEN5 Printhead Water (PPHRI18045).

Technical Specifications

• Size: 13,2 x 120 x 75,5 mm (excluding cables)
• Head Materials: SST, Ni and Epoxy Adhesive (direct contact with ink)
• Nozzle Plate Surface: Non-wet coating
• Number of Nozzles: 2 x 192 nozzles
• Nozzle Spacing: 0,1693 mm
• Piezo Type: D33 Stacked PZT
• Temperature Control: Integrated Heater and Thermistor
• Operator Temperature range: Up to 80° C
• Native Drop Volume: 15 pl
• Drop Volume Range: 15-45 pl
• Jetting Frequency: Up to 30 kHZ
• Life: 100 billion actuations per nozzle
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
