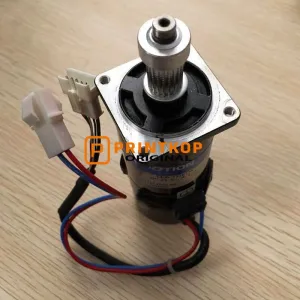

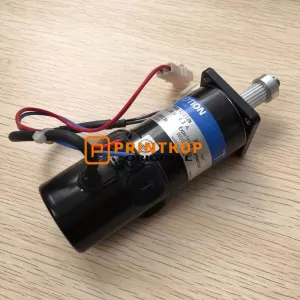

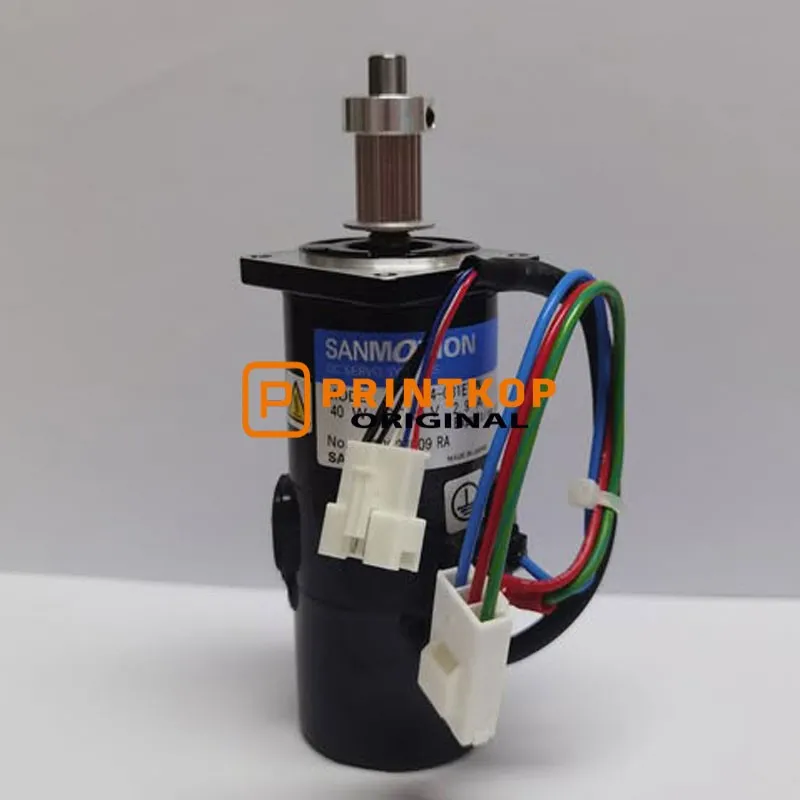

Restore smooth and accurate carriage movement to your wide-format printer with this Genuine OEM Mimaki Y-Axis Motor Assembly (Assy 30). Engineered to manage precise movement of the printhead carriage along the Y/scan axis, this authentic factory replacement part corrects tracking errors, motor stalling, and encoder feedback problems.
Technical Specifications
- Condition: Brand New / New in Original Factory Packaging
- Part Number (PN): M011925 (Direct replacement for legacy part numbers like M008364)
- Component Type: Y-Axis Motor / Scan Motor Assembly (Features white connector build)
- Manufacturer: Mimaki
Printer Compatibility
This original Y-axis motor assembly is designed for a wide range of Mimaki solvent and eco-solvent printers:
- Mimaki CJV30 Series: CJV30-60 / CJV30-60BS, CJV30-100 / CJV30-100BS, CJV30-130 / CJV30-130BS, CJV30-160 / CJV30-160BS
- Other Models: Mimaki TPC-1000, TS34-1800A, JV33 series (verify exact configuration)
Condition
- Brand new.
- Original factory packaging.
- Unused, unopened, and not installed.
- Stored properly and handled carefully.
Shipping
- Handling Time: We ship within 1–2 business days after cleared payment.
- Shipping Service: Shipped via FedEx / DHL / Local courier with tracking.
- Packaging: Printhead is packed securely with protective materials to prevent damage during transit.
- Combined Shipping: We offer combined shipping on multiple items. Please message us before payment for a revised invoice if you are purchasing more than one item.
- International Shipping: Available, shipped via FedEx / DHL / Local courier with tracking. Import duties, taxes, and customs charges are the buyer’s responsibility and are not included in the item price or shipping cost.
Returns
- Return Window: Returns accepted within 14 / 30 days of delivery.
- Condition for Return: Item must be unused, unopened, and in original factory-sealed packaging. Once the packaging is opened or the board is installed, it cannot be returned unless it is proven to be dead on arrival (DOA) and not damaged by improper handling or installation.
- Return Shipping: Buyer pays return shipping unless the item is not as described or is DOA and confirmed by us.
- Refund: Refund issued for the item price once the returned item is received and inspected. Original shipping charges are non-refundable unless the return is due to our error.
Please contact us before initiating a return so we can provide instructions and, if applicable, an RMA number.
Warranty
- Our Warranty: This item is sold as new, factory sealed. We do not provide an additional seller warranty beyond the return policy described above.
- Manufacturer Warranty: Any manufacturer warranty is subject to Mimaki’s policies and may require proof of purchase from an authorized distributor. We are an authorized Mimaki Distributor - please message us if you have specific warranty questions.
- DOA Policy: If the board is confirmed dead on arrival (no electrical shorts caused by the user, proper installation, and compatible electronics), we will replace or refund according to our return policy. Damage caused by incorrect installation, incompatible electronics, wrong ink, static discharge, or physical damage is not covered.
Important Handling & Safety Notes
- Verify Part Numbers: It is the buyer's responsibility to confirm that part number E106803 matches their printer’s service manual or existing board before completing the purchase.
- Professional Installation Required: Main power boards handle high voltages. Improper installation, incorrect grounding, or faulty wiring can damage the new component instantly. Installation by a certified technician is strongly recommended.
- Pre-Installation Troubleshooting: Ensure that underlying short circuits (such as damaged mainboards, blown printheads, or shorted head cables) are fully diagnosed and resolved before connecting this new power board.
