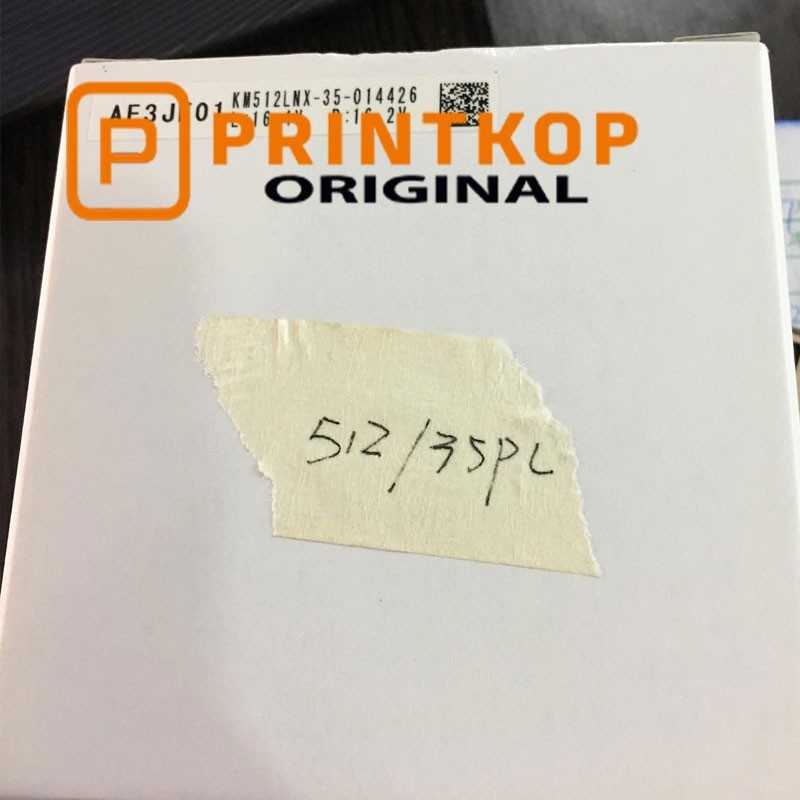

Konica KM512LNX Printhead

The KM512LNX is a piezo on-demand industrial inkjet printhead in Konica Minolta’s KM512 series, with 512 nozzles and a 360 dpi native resolution. It is designed for high-speed industrial printing and is often used in solvent, oil-based, and some UV ink systems depending on the exact variant.

Key buying specs

•     Drop size: 42 pl for KM512LNX, with the KM512 family also including 14 pl and 4 pl variants in other models.
•     Nozzles: 512 total, arranged as 256 nozzles per line.
•     Print width: 36.1 mm.
•     Max frequency: 7.6 kHz for the KM512LNX.
•     Weight: about 95 g.

Compatibility questions

•     It is commonly listed as compatible with oil-based, solvent, and UV inks depending on the exact head version and system configuration.
•     Konica Minolta notes that ink compatibility depends on ink viscosity, surface tension, and chemical properties, so final approval should be based on your ink set and printer system.
•     The head is typically used in industrial printers where maintenance and system design strongly affect life and reliability.

Purchase decision checks

•     Confirm whether your printer needs the 42 pl KM512LNX or a different KM512 variant such as 14 pl or 35 pl.
•     Match the ink type exactly; do not assume all KM512 heads are interchangeable across solvent, UV, and other ink chemistries.
•     Check whether your system expects binary-only operation or grayscale support, since KM512 family variants differ.
•     Replace head cables when installing a new head, as some suppliers explicitly recommend this for reliable setup.

Maintenance and risk

•     Most printhead failures are caused by nozzle damage, clogging, or poor handling rather than firing count alone.
•     Regular wiping, purging, and capping during idle periods are important for preserving performance.
•     If the head will run in a high-viscosity or heated ink environment, confirm heater support before buying.

Quick verdict

Choose the KM512LNX if you need a robust 360 dpi, 42 pl industrial head for high-throughput work and your ink system is already validated for it. Avoid buying on model name alone; confirm ink chemistry, waveform/support data, and printer compatibility first.
