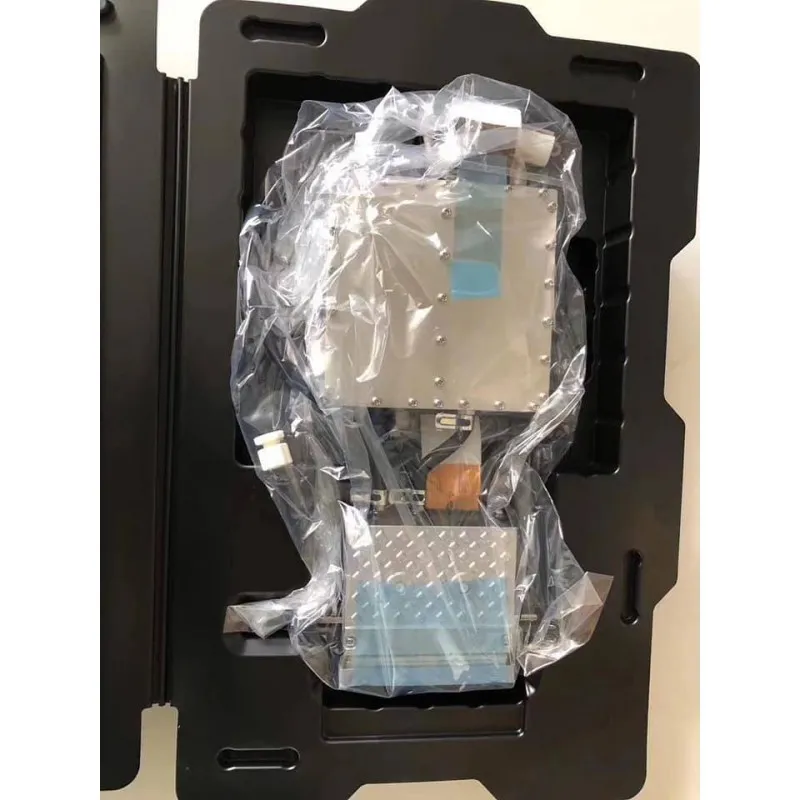

Mimaki M025074 Print head

The Mimaki M025074 print head, also known as the original Mimaki UJF-7151 Plus printhead, is compatible specifically with the Mimaki UJF-7151 Plus printer. It is also identified by the part number M017429, which was replaced by MP-M025074. This print head uses on-demand piezo technology for printing and has 636 nozzles with a nozzle resolution of 300 npi. The print width is 53.7 mm, and it is designed for UV-curing ink types.

The print head assembly includes brackets, tubes, a damper, and a sub-tank, with an ink re-circulation structure through all channels to maintain ink flow and quality during printing. Its size measures approximately 94.1 mm in width by 26 mm in height. Installation of this printhead is recommended to be done by professionals due to its precision nature.​

Mimaki M025074 Print head key details:

• Print Method: On-Demand Piezo technology

• Number of Nozzles: 636

• Nozzle Resolution: 300 npi (nozzles per inch)

• Print Width: 53.7 mm

• Drop Volume: 57 to 80 picoliters

• Jetting Frequency: 4.8 kHz with 7 drops

• Drive Voltage (Head): 14 to 31 V

• Ink Type: UV-curing

• Ink circulation: Features ink circulation technology that helps reduce clogging by continuously recirculating ink through all channels.

• The assembly includes brackets, tubes, damper, and subtank

• Size approximately 94.1 mm wide by 26 mm high

• Origin: Original parts from Japan, with warranty, guaranteeing reliability and testing standards

In summary, the Mimaki M025074 printhead is a precision-engineered original part for the Mimaki UJF-7151 Plus, essential for maintaining the printer’s performance and output quality. It is manufactured in Japan and compatible specifically with the UJF-7151 Plus printer. Important operational parameters to consider are flow, power, ink type, and voltage.​
