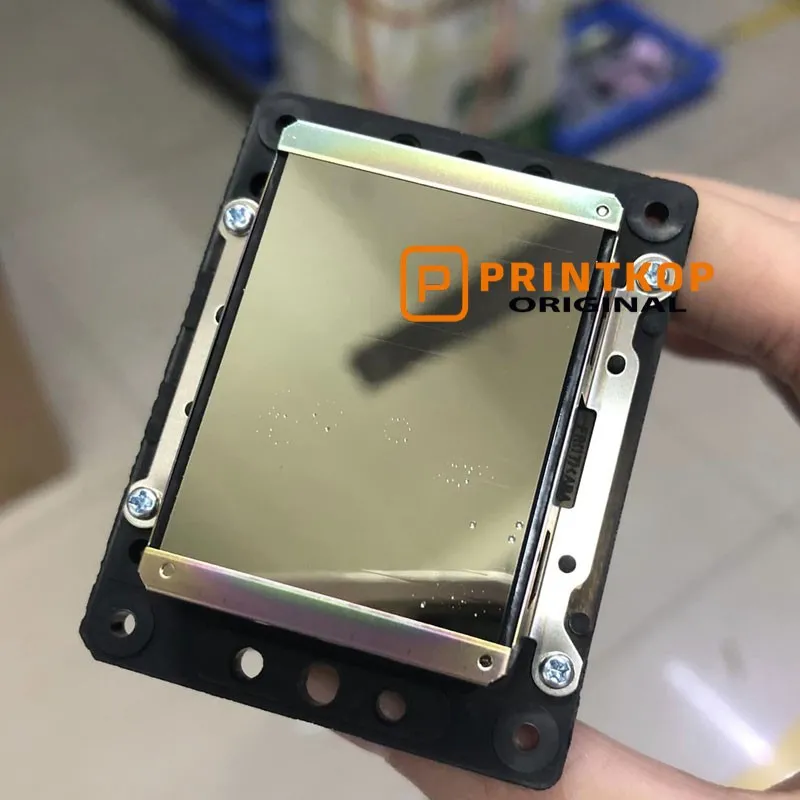

Mutoh DH-40694 PrintHead

This Mutoh PrintHead (I1600-E1) - DH-40694 is suitable for Mutoh XPJ-1341SR-P and Mutoh XPJ-1641SR-P printers

This 1.33 inch-wide MEMs printhead provides high productivity and high image quality with 600dpi high-density resolution. This Mutoh PrintHead (I1600-E1) - DH-40694 is compatible with ecosolvent inks. We recommend to change the head cables when installing a new printhead.

Specifications

• Ink Type : Eco-solvent
• Type : PrecisionCore MicroTFP printhead
• Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
• Weight : 80g
• Number of nozzle : 1600
• Nozzle pitch/nozzle row : 1/300 inch
• Nozzle rows: 4 rows
• Nozzle Resolution : 300 noi/row 600 npi/2 rows
• Max. number of colour inks : 4 colours
• Effective print width : 33.8 mm (1.33 inches)
• Droplet ejection performance :
• Binary : 5pl at43.2kHz
• 3 levels grey scale : 6, 12.5 pl at 21.6 kHz
• 4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz
• Viscosity range : 5-7 mPa･s
• Positioning mechanism: Reference hole
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
