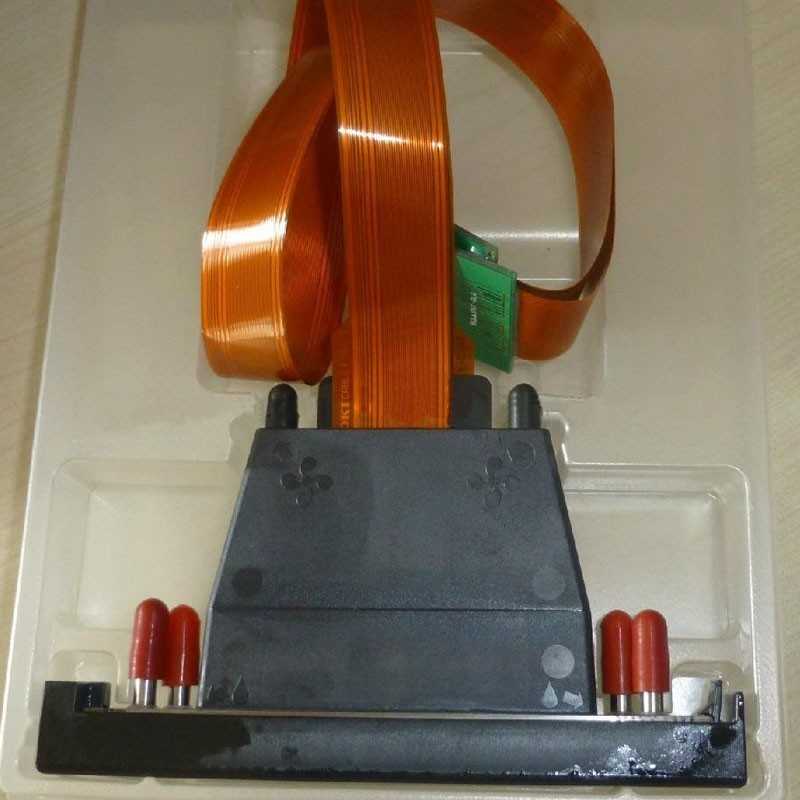

Ricoh MH2810F Printhead Cable 519mm

The head’s total length is 519 mm, with the head cable itself listed as 440 mm, and it is a Ricoh original printhead with 384 nozzles for 1-color printing.

Basic specs

•     Model: Ricoh MH2810F.
•     Total length: 519 mm, including head body, cable, and connectors.
•     Head cable length: 440 mm.
•     Nozzles: 384.
•     Color support: Up to 1 color.

Common questions

•  What is it used for?

    It is an industrial inkjet printhead designed for a wide range of printers, especially applications that benefit from Ricoh’s flow-through stainless-steel head design.

•  Is this an original Ricoh part?

    Yes, it is as an original Ricoh printhead.

•  Why does the 519 mm length matter?

   That figure refers to the full assembly length, not just the printhead body, so it helps when checking printer carriage space and cable routing.

•  Does it support high-viscosity ink?

    Ricoh’s MH2810F/2910F family has a built-in heater and is designed for high-viscosity inks, according to Ricoh’s product sheet.

Compatibility notes

The MH2810F belongs to Ricoh’s MH series, which is intended for different industrial inkjet applications and can be customized in some configurations, such as cable length and alignment-pin direction. Ricoh also notes that ink compatibility must be evaluated for the specific ink being used.

Buying check

Before ordering, confirm:

•     your printer supports the MH2810F series.
•     you have enough physical space for the 519 mm assembly length.
•     your controller/electronics are compatible with Ricoh MH printheads.

In short, the Ricoh MH2810F519 mm cable version is a long-format industrial printhead assembly with 384 nozzles, 1-color support, and a 440 mm head cable. It is suited to industrial printing setups, but final compatibility depends on your printer hardware, ink, and drive electronics.
