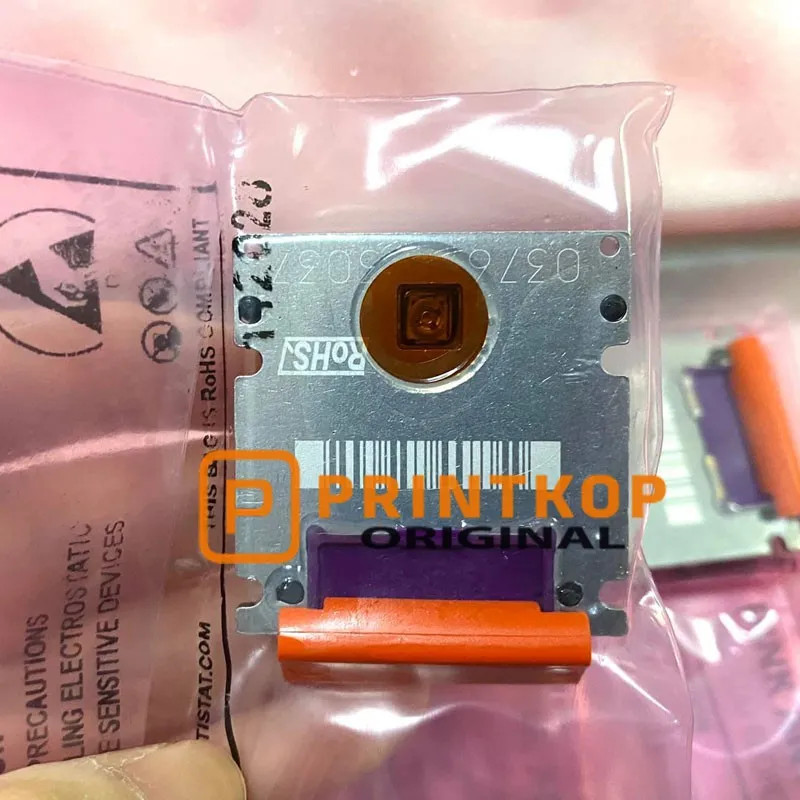

Xaar 128/80W Printhead Purple - XP12800006

This purple tag Xaar 128/80W Printhead Purple - XP12800006 is suitable for a wide range of oil-based, solvent and dye sublimation inks. Compatible with a wide range of oil-based, solvent and dye sublimation inks, the Xaar 128 is extensively used across the coding & marking and wide-format graphics industries.

It's a consistent and highly flexible inkjet solution for producing eye-catching marketing media. This is original Xaar 128/80W Printhead Purple - XP12800006. The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.

Product Specifications

• Tag: Purple tag
• Active nozzles: 128
• Print swathe width: 17.4 mm
• Nozzle pitch: 137.1 μm
• Nozzle density: 185 npi
• Drop velocity: 5 m/s
• Printhead weight: 15.5 g
• Dimensions: 37.2 x 40.8 x 11.3 mm
• Drop volume: 80 pl
• Typical firing frequency: 5.5 kHz
• Country: UK
• This Xaar 128/80W replaces Xaar 126/80 printheads that were discontinued by Xaar.
• We recommend to change the head cables when installing a new printhead.
