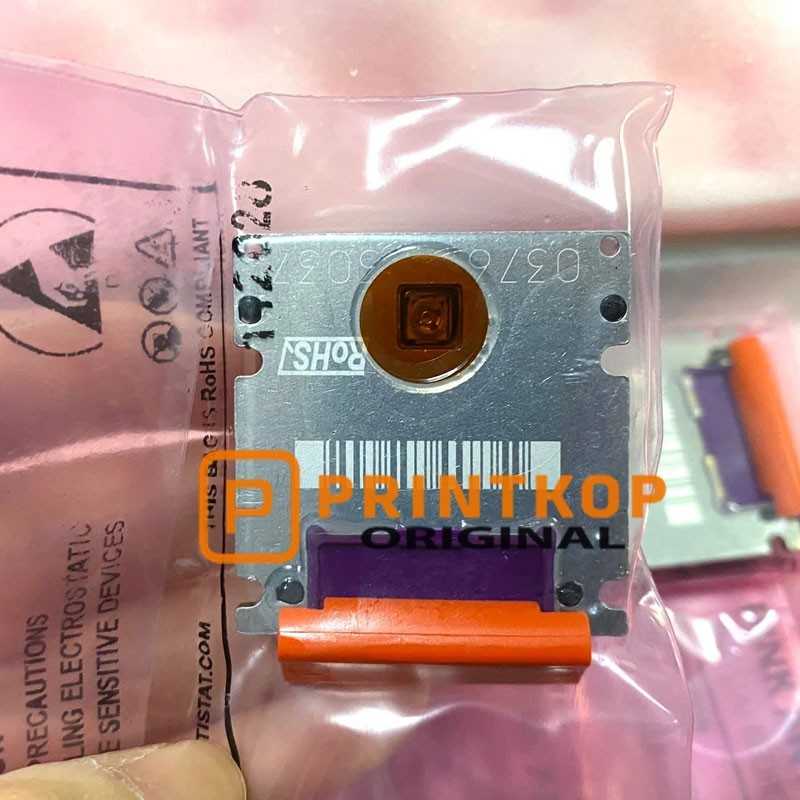

Xaar 128/80W Printhead Purple - XP12800006

Name: Xaar 128/80W Printhead Purple - XP12800006
Brand: Xaar
SKU: KOPPRHW-XAAR-0025
Price: 214.40 USD
Availability: InStock

Reference KOPPRHW-XAAR-0025

Brand Xaar

This item is genuine Xaar 128/80W Printhead Purple - XP12800006. All orders are shipped promptly and come with a 100% satisfaction guarantee.

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

The Xaar 128/80W with purple insulator (part XP12800006) is an industrial solvent/oil inkjet printhead designed for wide‑format graphics and coding & marking, with 128 nozzles, 80 pL drops, and up to ~5.5 kHz firing.

Core specifications (buyer checklist)

Parameter	Value / Typical
Part number	XP12800006 (Purple tag)
Active nozzles	128
Nozzle density	185 npi (nozzles per inch)
Nozzle pitch	137.1 µm
Print swathe width	~16.5–17.4 mm (depends on source; commonly listed as 16.5 mm at 71.6° angle or ~17–17.4 mm straight)
Drop volume	80 pL
Drop velocity	~5 m/s
Max / typical firing frequency	Up to 5.5 kHz (ink & system dependent)
Single‑pass pixel resolution	200 × 200 dpi
Ink types	Oil‑based, solvent, and dye‑sublimation inks (some sellers also list water‑based compatibility for newer replacements)
Weight (dry)	~15.5 g
Dimensions (W × D × H)	37.2 × 11.3 × 40.8 mm
Nozzle plate	Wetting type (purple variant)
Typical applications	Wide‑format solvent printers, coding & marking, outdoor/indoor graphics, cartons, posters

How it compares within the Xaar 128 family

Xaar sells the “128” in several variants distinguished by color tag, drop size, resolution, and nozzle plate. For quick evaluation, focus on these axes:

Variant (insulator color)	Drop volume	Resolution (single pass)	Nozzle plate	Typical use case
Blue (e.g. 128/80)	80 pL	200 × 200 dpi	Non‑wetting	General solvent/oil, robust in harsh conditions
Dark Grey (e.g. 128/40)	40 pL	360 × 360 dpi	Non‑wetting	Higher resolution, finer detail
Purple (XP12800006, 128/80W)	80 pL	200 × 200 dpi	Wetting	Solvent/oil/dye‑sub, good for graphics & coding where 80 pL is desired
Light Grey (e.g. 128/40W)	40 pL	360 × 360 dpi	Wetting	High‑resolution solvent/oil applications

Key takeaways for our customers decision:

If you need larger drops / higher coverage / faster laydown and your printer is tuned for 80 pL, the purple 80W is the right choice.
If you need sharper text / fine lines and your system supports higher frequency and smaller drops, a 40 pL variant (grey) may be better.
The “W” (wetting) nozzle plate affects ink behavior at the nozzle face and is matched to specific inks and waveforms; don’t mix variants without checking printer/ink compatibility.

Compatibility and replacement notes

The XP12800006 is used in many large‑format solvent printers (e.g., certain Infiniti, Ampla Targa Plus, HP Fresco‑class machines, and Chinese wide‑format models).
The newer Xaar Irix Core 80W (purple) as a direct replacement for discontinued XP12800005/XP12800006, with identical performance and no firmware changes required.
If you’re buying today, please ask the us whether we're shipping original XP12800006 or the Irix Core replacement, and confirm printer model compatibility and warranty
