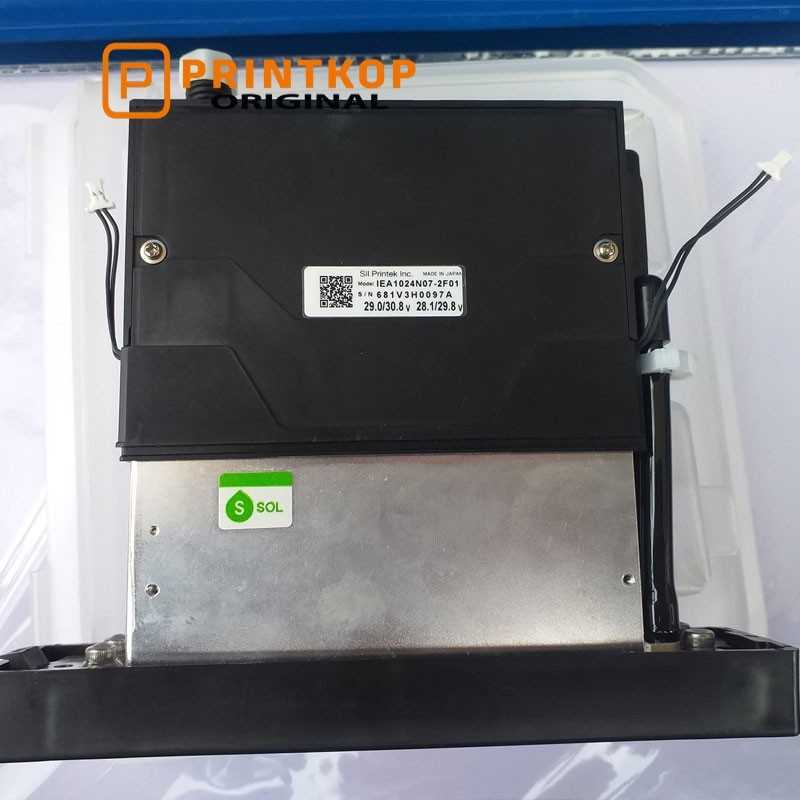

Seiko 1024 HG-S 7PL Printhead

Original Seiko 1024 GS grayscale print head with 7 pL drop volume, 1024 active nozzles, 4-row configuration, and built-in damper and nozzle guard. Designed for solvent, UV, and oil-based inks in industrial wide-format printers.

Key Features

•     Grayscale printing with 8 grey levels for high-quality images and smooth tonal transitions.
•     Drop volume: 8 pL (HG-S) at 1-drop binary, 6 m/s jet velocity.
•     1024 active nozzles arranged in 4 rows for high-resolution output.
•     Built-in integrated damper assembly and nozzle guard for improved reliability and reduced maintenance.
•     Compatible with oil-based, UV, and solvent-based inks.
•     Supports both vertical and horizontal print directions.

Technical Specifications

Printer Compatibility

This printhead is used in a range of industrial inkjet printers, including:

•     Infiniti FY-1325G
•     Munda MF-2513GS
•     Ntek YC2513GS

It is commonly found in 3200 mm wide-format solvent/Eco-solvent printers equipped with 2× or 6× Seiko 1024HG heads.

Condition & Warranty

•     Condition: New original Seiko printhead (not refurbished).
•     Warranty: Manufacturer warranty included (terms vary by seller).
•     Recommendation: Replace head cables when installing a new printhead to ensure optimal performance and avoid communication issues.

Package Includes

•     1 × Seiko 1024 HG-S 7PL Printhead (IEA1024N07-2F01)
•     Protective packaging for shipping

Notes for Buyers

•     Ensure your printer controller supports the Seiko 1024GS parallel + I2C interface and 8-level grayscale mode.
•     Verify ink compatibility (solvent/UV/oil) and pressure requirements before installation.
•     Handle the printhead carefully; avoid contact with the nozzle plate and protect from dust and impact.
