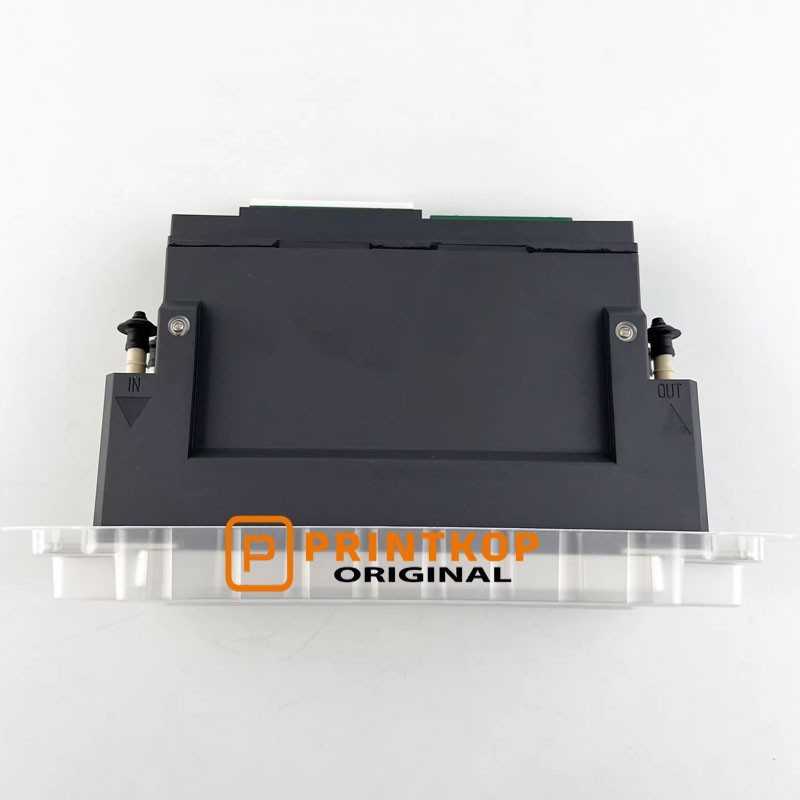

Seiko RCH1536L 25-225pl UV Printhead

The Seiko RCH1536L is a reliable industrial inkjet printhead designed for demanding printing applications such as ceramic, corrugated cardboard, textiles, and other industrial inkjet systems. It offers high productivity, fine drop control, and broad ink compatibility, making it suitable for production environments that need consistent output and strong uptime.

Key Features

•     Drop volume range: 25 to 225 pL.
•     1536 active nozzles in 4 rows.
•     Native nozzle resolution: 360 npi.
•     Jetting frequency: up to 37 kHz.
•     Grey scale capability: up to 10 levels.
•     Possible print directions: vertical and horizontal.
•     Print width: 108.3 mm.
•     Ink compatibility: oil-based, UV, solvent, and water-based depending on model variant.
•     Parallel driving interface.
•     Country of origin: Japan.

Performance

•     Maximum productivity at 10 drops: 2.477 µL/sec.
•     Discharge at 25 m/min: 85 g/m².
•     Low-voltage operation with high flow ink circulation at nozzle level.

Physical Specifications

•     Dimensions: 180.0 x 47.6 x 123.3 mm.
•     Weight: greater than 0.7 kg.
•     Ink inlets/outlets: 1/1.

Suitable Applications

•     Ceramic printing.
•     Corrugated cardboard printing.
•     Textile printing.
•     Industrial inkjet printing systems.

Condition / Notes

This printhead is supplied as an industrial replacement part and is commonly used in production printers. It is also recommended to replace the head cables together with a new printhead.
