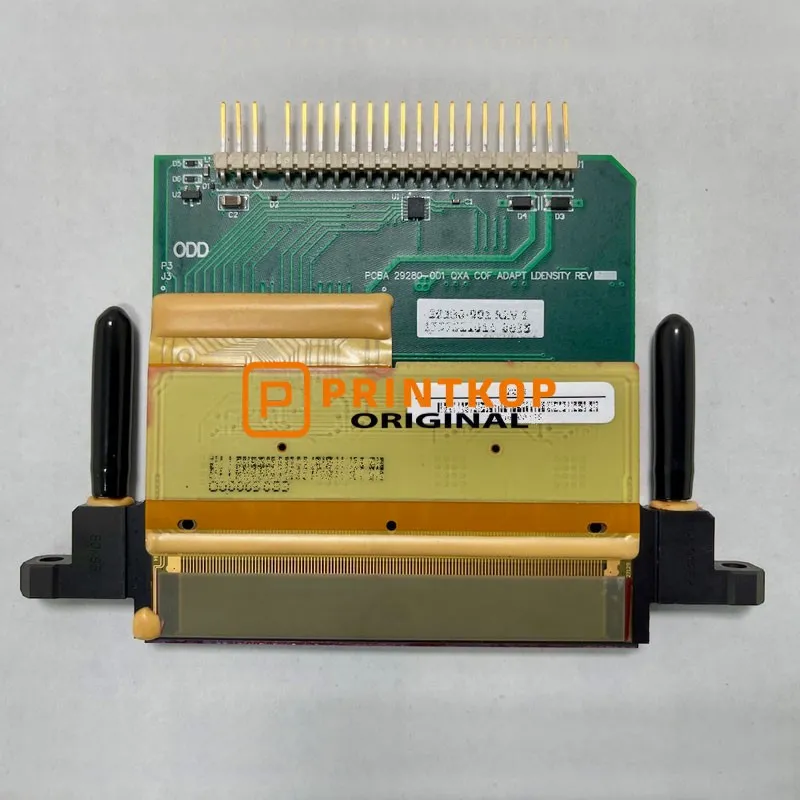

Emerald QE-256/30 AAA Printhead

The Emerald QE-256/30 AAA printhead is a high-performance inkjet printhead featuring 256 independent channels arranged in a single row with a nozzle spacing of 100 dots-per-inch (dpi). It is designed to eject adjustable drops ranging from 30 to 80 picoliters in binary jetting mode or a 30-picoliter fundamental drop in grayscale mode, with a nominal drop velocity of 8 meters per second for fluids in the 10 to 14 centipoise viscosity range.

This printhead utilizes Dimatix's VersaDrop™ jetting technology, enabling flexible operation with adjustable binary drop sizes and grayscale capability at high throughput rates. It supports a broad range of fluids, including UV-curable, solvent, and aqueous inks, thanks to its rugged metal nozzle plate technology. The printhead can operate at temperatures up to 90°C and includes features such as an integral temperature sensor, dual-ported fluid interface for easy flushing or recirculation, and precise alignment points for accurate nozzle placement.

With excellent channel-to-channel uniformity, high-frequency continuous operation, and lightweight, thin-profile construction, the Emerald QE-256/30 AAA is suitable for scanning printer architectures and industrial applications requiring high precision and versatility. It also incorporates OEM-accessible non-volatile memory for tracking purposes.

Emerald QE-256/30 AAA Printhead specifications:

• 256 individually addressable nozzles in a single row at 100 dpi spacing

• Drop sizes: 30 to 80 picoliters adjustable

• Jetting fluids: UV-curable, solvent, aqueous inks

• Operating temperature: up to 90°C

• Compatible fluid viscosity: 8-20 cP (recommended 10-14 cP)

• Maximum firing frequency: up to 33 kHz with 30 pl drops

• VersaDrop™ binary and grayscale jetting modes

• Integral temperature sensor and robust metal nozzle plate

• Print width approximately 64.77 mm (2.55 inches)

This Emerald QE-256/30 AAA Printhead is designed for versatile and precise industrial printing applications, providing excellent drop placement accuracy and durability
