Kyocera KJ4B-YH06WST-HG2V Printhead
  • Kyocera KJ4B-YH06WST-HG2V Printhead
  • Kyocera KJ4B-YH06WST-HG2V Printhead

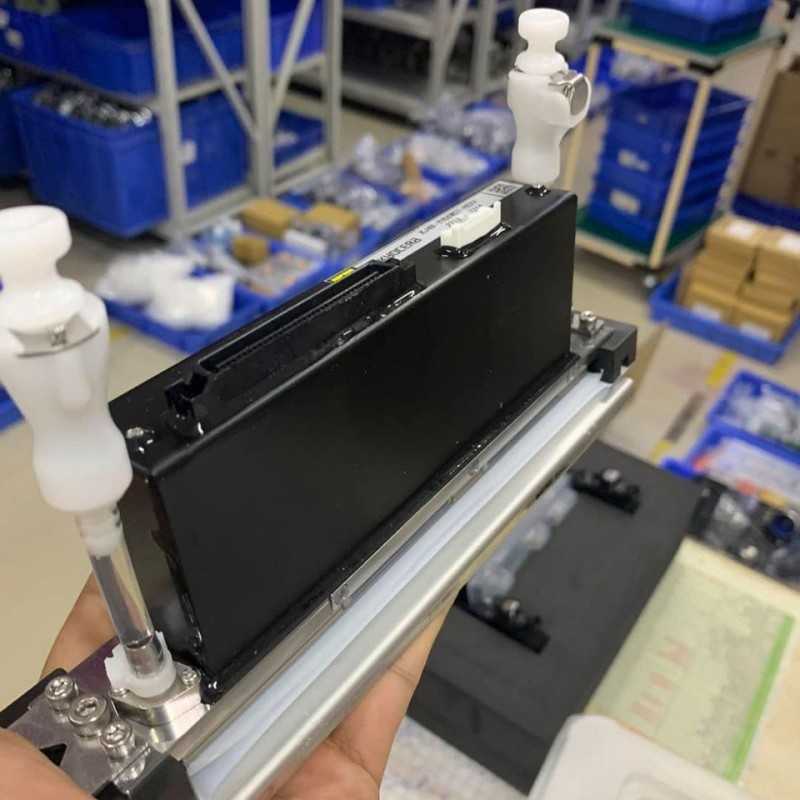

Kyocera KJ4B-YH06WST-HG2V Printhead

KOPPRHW-KYCR-00046
Kyocera

This item is an original Kyocera KJ4B-YH06WST-HG2V Printhead, low prices, fast delivery, All products are 100% Guarantee.

2.028,00 $
Entrega en 2 días.
Cantidad
En stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Descripción

The Kyocera KJ4B-YH is a high-speed industrial inkjet printhead specifically designed for printing with water-based (aqueous) inks, commonly used in textile printing machines like the Gongzheng Flora.

Key Specifications

ParameterSpecification
Resolution600 × 600 dpi
Print Width108.25 mm
Total Nozzles2,656 nozzles
Nozzle Pitch0.042 mm
Drop Volume5, 7, or 12 pl (5pl at 75 m/min)
Max Drive Frequency40 kHz
Drop Rate30,000 drops/second
Max Print Speed100 m/min
Ink Viscosity5.0 – 6.0 mPa·s (optimum)
Dimensions200 × 30 × 60.9 mm
Weight438 g (dry)
OriginJapan

Key Features

  • Internal filters to eliminate foreign objects in ink

  • Internal heater to adjust for external temperature impacts

  • Unique ink channel design for stable ink supply

  • Single-color printhead

This Kyocera KJ4B-YH06WST-HG2V Printheadcarries a manufacturer warranty, though warranty excludes defects from non-original inks, clogged/nozzle issues, misuse, or lack of maintenance.

Detalles del producto
KOPPRHW-KYCR-00046
Nuevo
