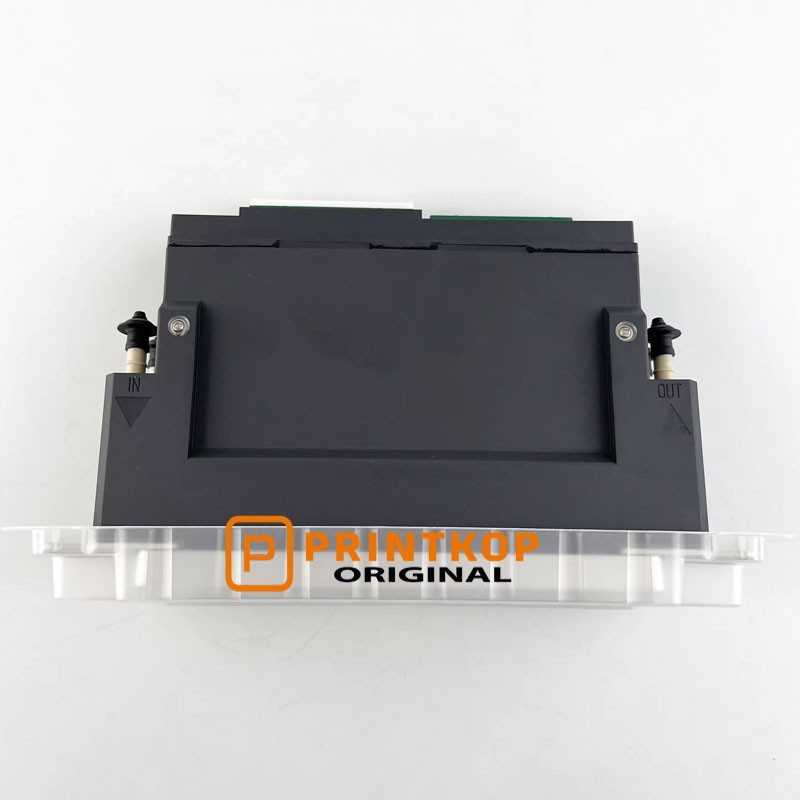

Seiko RCE2560 Printhead

Seiko RCE2560 is a 600 dpi industrial inkjet printhead with 2560 nozzles, true nozzle recirculation, variable drop size, and wide ink compatibility for high‑speed, high‑resolution production printing.

Key Features

•     Model: Seiko RCE2560 (also known as Seiko 2560).
•     Native resolution: 600 dpi for sharp text, graphics, and fine details.
•     Nozzles: 2560 nozzles arranged in 4 rows for high productivity.
•     Print width: 108.3 mm, suitable for wide variety of industrial and graphic applications.
•     True nozzle‑level recirculation for reduced clogging, stable jetting, and consistent print quality.
•     Variable drop size: approx. 9–30 pL (multiple gray levels up to 16) for smooth gradients and precise color control.
•     High‑speed performance with jetting frequency up to 40 kHz for fast production at full 600 dpi resolution.
•     Wide ink compatibility: supports aqueous, solvent‑based, oil‑based, and UV‑curable inks (viscosity approx. 5–20 mPa·s).
•     Jetting velocity: around 7 m/s at 3 mm print gap for reliable, stable printing.
•     Robust, compact design with isolated channel technology and integrated next‑generation waveform control for long‑term industrial use.
•     Flexible mounting orientation: can be installed horizontally or vertically to suit different machine designs.

Technical Specifications

•     Printhead type: Industrial ceramic inkjet printhead.
•     Model: RCE2560.
•     Resolution: 600 dpi native.
•     Nozzles: 2560 (4 rows).
•     Print width: 108.3 mm.
•     Drop volume: approx. 9–30 pL, multiple gray levels (up to 16).
•     Max jetting frequency: up to 40 kHz.
•     Ink types: Aqueous, solvent, oil‑based, UV‑curable.
•     Recommended ink viscosity: approx. 5–20 mPa·s.
•     Jetting velocity: approx. 7 m/s at 3 mm gap.
•     Mounting: Horizontal or vertical.

Typical Applications

•     Textile printing: fashion apparel, home textiles, technical fabrics.
•     Packaging: corrugated cardboard, labels, flexible packaging films.
•     Ceramics and glass decoration: tiles and other rigid surfaces.
•     Coding and marking: industrial product marking and traceability.
•     Graphics and signage: high‑resolution banners, posters, and displays.

Product Advantages

•     High resolution and fine detail with 600 dpi native output.
•     True recirculation directly behind the nozzles, helping maintain print quality with challenging inks and reducing downtime.
•     Versatile ink support (aqueous, solvent, oil, UV) for use across many different markets and substrates.
•     Designed for demanding industrial environments, offering durability, stability, and long service life.

Compatibility & Use

•     Designed for integration in industrial inkjet printers and single‑pass or scanning systems for textiles, packaging, ceramics, and signage.
•     Suitable for manufacturers and users needing high‑speed, high‑resolution, multi‑gray‑level printing with reliable ink recirculation.
