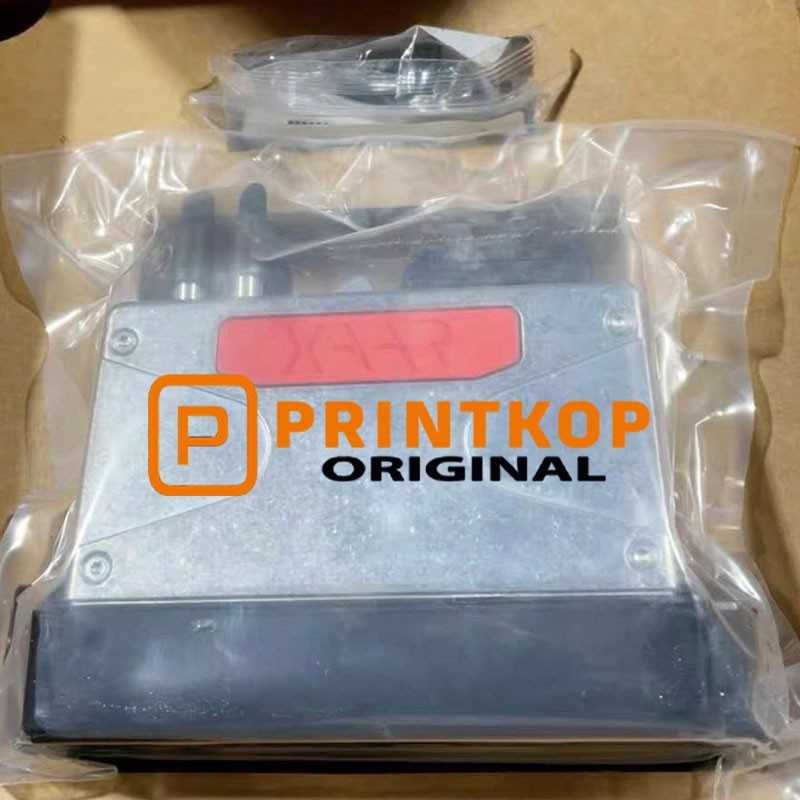

The Xaar Xaar 2001+ GS6C printhead is an advanced industrial inkjet printhead designed primarily for single-pass ceramic tile decoration and heavy-duty industrial printing. It delivers high-resolution grayscale printing, exceptional line speeds, and robust reliability using Xaar's patented technology
Item specifics
- Active Nozzles: 2,000 active industrial nozzles per head
- Print Swathe Width: 70.5 mm
- Native Print Resolution: 720 dpi (Single-colour mode) or 360 dpi per colour (Dual-colour mode)
- Max Firing Resolution: Up to 1440 dpi interpolated
- Grayscale Capabilities: 8 gray levels
- Base Drop Size Volume: 6 picoliter (GS6) for high-definition fine text, detailing, and sharpness
- Maximum Line Speed: Up to 50 m/min at 360 × 360 dpi; 25 m/min at 720 × 720 dpi
- Ink System Architecture: Supports 1 or 2 unique fluid paths (Flexible 1- or 2-colour configurations)
- Compatible Ink Chemistry: Heavy-duty oil-based inks, UV-curable inks, and organic solvent fluids
- Core Patented Technologies: TF Technology (Continuous ink recirculation directly behind the nozzle), High Laydown (HL) Technology (High discharge rates for specialized glaze effects), XaarGuard (Nickel-alloy nozzle plate protection)
- Data Interface Integration: Integrates directly with the Xaar 2001+ Head Personality Card (HPC)
- Country/Origin: United Kingdom (Manufactured at official Xaar)
Compatible printer models
The Xaar 2001+ GS6C printhead is a highly specialized industrial component primarily integrated into high-speed digital single-pass ceramic tile decoration systems and wide-format industrial presses.
- KERAjet: KERAjet 700, S7 Unica series, and related modular print bars.
- EFI Cretaprint: Specialized C4 / hybrid industrial ceramic digital lines.
- TecnoFerrari: VivaJet series digital printing presses.
- System Ceramics: Creadigit series single-pass machines.
- Other Industrial Applications: Label press variations, coding systems, and high-speed packaging lines utilizing oil-based or compatible UV fluid configurations.
Important Notice
To prevent costly buyer return requests, it is critical to explicitly state what this head does NOT fit:
Do not buy this Xaar 2001+ printhead if you own any of the machines listed below. It looks identical on the outside, but the internal electronics are totally different and will not work.
- NOT compatible with older Xaar 1001, 1002, or 1003 series systems: The Xaar 2001+ utilizes a distinct 4-row, 2,000-nozzle layout. It cannot physically mount or electrically interface with print bars built for older 1,000-nozzle architectures (such as the Xaar 1003 GS6C or GS12C).
- NOT a drop-in replacement for the Xaar Nitrox or Aquinox: While these also utilize Xaar's ink-recirculation technology, they feature different physical housings and footprint architectures.
- NOT compatible with Xaar GS12 or GS40 configurations: This is specifically the GS6C (6-picoliter) variant. It will not function correctly if your printer's firmware and active print channels are hard-coded for the larger drop volumes of the GS12C (12-picoliter) or GS40C (40-picoliter) heads.
- NOT compatible with standard Water-Based (Aqueous) inks: The GS6C fluid path is strictly engineered for heavy-duty oil-based, organic solvent, and specific UV-curable industrial inks. Running unapproved aqueous inks will corrode the head and instantly destroy the internal piezo actuators.
- NOT compatible with standard HPC3 Head Personality Cards: This head explicitly requires the upgraded Xaar 2001+ Head Personality Card (HPC). It cannot be driven by older HPC3 electronics infrastructure used in legacy industrial printers.
- NOT for Consumer or Desktop Printers: This is a heavy-duty industrial single-pass component weighing several hundred grams. It does not fit consumer, commercial office, or entry-level wide-format plotters (e.g., Epson, Roland, Mimaki, or HP desktop plotters).
Not sure? Send us a quick photo of your current printhead's factory part code sticker before buying, and we will verify the fit for you!
Condition & Packaging
- Condition: New
- Packaging: Factory sealed in original Toshiba packaging
- Handling: Do not open the printhead package until you are ready to install. Avoid touching the nozzle plate or electrical contacts. Store in a cool, dry place, away from direct sunlight and extreme temperatures.
Shipping
- Handling Time: We ship within 1–2 business days after cleared payment.
- Shipping Service: Shipped via FedEx / DHL / Local courier with tracking.
- Packaging: Printhead is packed securely with protective materials to prevent damage during transit.
- Combined Shipping: We offer combined shipping on multiple items. Please message us before payment for a revised invoice if you are purchasing more than one item.
- International Shipping: Available, shipped via FedEx / DHL / Local courier with tracking. Import duties, taxes, and customs charges are the buyer’s responsibility and are not included in the item price or shipping cost.
Returns
- Return Window: Returns accepted within 14 / 30 days of delivery.
- Condition for Return: Item must be unused, unopened, and in original factory-sealed packaging. Once the printhead packaging is opened or the head is installed, it cannot be returned unless it is proven to be dead on arrival (DOA) and not damaged by improper handling or installation.
- Return Shipping: Buyer pays return shipping unless the item is not as described or is DOA and confirmed by us.
- Refund: Refund issued for the item price once the returned item is received and inspected. Original shipping charges are non-refundable unless the return is due to our error.
Please contact us before initiating a return so we can provide instructions and, if applicable, an RMA number.
Warranty
- Seller Warranty: This item is sold as new, factory sealed. We do not provide an additional seller warranty beyond the return policy described above.
- Manufacturer Warranty: Any manufacturer warranty is subject to Xaar’s policies and may require proof of purchase from an authorized distributor. We are an authorized Xaar Distributor - please message us if you have specific warranty questions.
- DOA Policy: If the printhead is confirmed dead on arrival (no electrical shorts caused by the user, proper installation, and compatible electronics), we will replace or refund according to our return policy. Damage caused by incorrect installation, incompatible electronics, wrong ink, static discharge, or physical damage is not covered.
Important Handling & Safety Notes
- Do not open the printhead until you are ready to install it.
- Follow your printer manufacturer’s installation and priming procedures exactly.
- Ensure your ink system, temperature settings, and waveforms are configured for the Xaar 2001+ GS6C printhead.
- Avoid touching the nozzle plate, filter, or electrical contacts.
- Store in a clean, dry environment, away from dust, direct sunlight, and temperature extremes.
