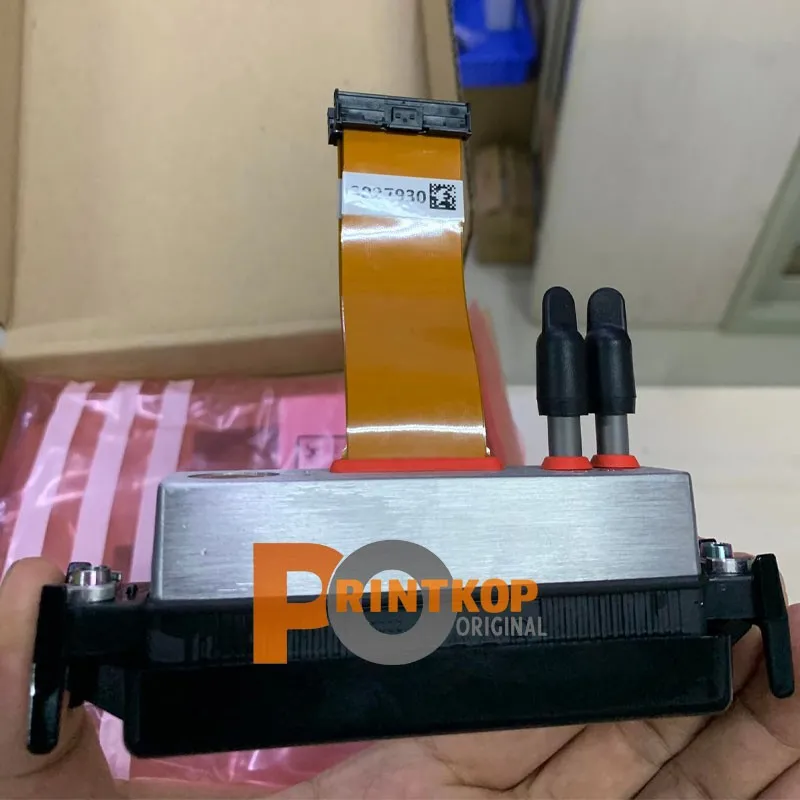

The Xaar 1003 GS40U Printhead is a high-performance industrial inkjet printhead engineered for high fluid laydown and specialty textured effects. It is heavily utilized in single-pass industrial printing, specifically for ceramic tile decoration, tactile packaging, labeling, and direct-to-shape applications.
Item specifics
Active Nozzles: 1,000 nozzles (arranged in 2 interleaved rows)
Native Resolution: 360 npi (nozzles per inch)
Drop Volume Range: 40 to 160 pL (picoliters) at 5 gray levels
Print Swathe Width: 70.5 mm
Firing Frequency: 6 kHz
Drop Velocity: 5 m/s
Compatible Ink Types: UV-curable and Oil-based fluids
Physical Dimensions: 125 x 30 x 60 mm
Dry Weight: 144 g
Country/Origin: United Kingdom (Manufactured at official Xaar)
Compatible printer models
The Xaar 1003 GS40U Printhead is a specialized component used in single-pass industrial machinery. To maximize the value of your eBay-style listing, you can insert this pre-formatted "COMPATIBLE PRINTER MODELS" section directly into the template provided previously.
The Xaar 1003 GS40U is designed for a broad spectrum of high-volume industrial single-pass presses, digital glazing machines, and advanced label printing lines. It is primarily compatible with:
Industrial Label & Packaging Presses:
Xeikon / Jetrion: Jetrion 4800, 4900, 4950, and related single-pass digital label series.
Fujifilm / FFEI: Graphium UV digital label presses.
Ceramic & Digital Glazing Machines:
EFI Cretaprint: C3, C4, and M4 ceramic inkjet printers.
Hope Ceramic: Various single-pass digital glazing systems.
TecnoFerrari: VivaJet series digital ceramic printers.
Full Backward Compatibility: Drop-in upgrade for any industrial printer architecture natively built for older Xaar 1001 and Xaar 1002 systems.
Note: Upgrading from 1001/1002 systems may require a firmware update or head-personality-card (HPC) validation.
Important Notice
To prevent costly buyer return requests, it is critical to explicitly state what this head does NOT fit:
This is a GS40U model (optimized for UV-curable and Oil-based fluids with a heavy 40–160 pL drop size). It will NOT replace or work in the following setups:
DOES NOT FIT Water-Based / Aqueous Systems:
The internal architecture and seals of the "U" series are specifically designed for UV and oil. Passing water-based inks or specialized textile inks through this head will permanently ruin the internal mechanics.
DOES NOT DIRECTLY REPLACE "C" Suffix Variant Systems (Without Re-calibration):
If your existing failed printhead reads Xaar 1003 GS40C (where "C" stands for Ceramics/Solvent), do not buy this "U" variant unless a certified field engineer has cleared your ink chemistry, plumbing, and waveforms for a UV/Oil conversion.
DOES NOT REPLACE Small Drop-Size Applications (GS6 or GS12):
If your system uses GS6 (6–42 pL) or GS12 (12–84 pL) printheads for high-definition fine text, barcodes, or detailed images, this GS40 head will not work.
The GS40 shoots massive 40–160 pL droplets. Installing it in a slot configured for a GS6 or GS12 will result in heavily flooded, blurry text, or immediate structural overflow.
DOES NOT FIT Non-1000 Series Xaar Systems:
This printhead will not fit printers built around traditional, non-recirculating Xaar models like the legacy Xaar 128, Xaar 500, or Xaar 382. It is purely designed for the Xaar 1001, 1002, and 1003 continuous flow (TF Technology™) footprints.
PLEASE DOUBLE-CHECK THE FULL PRINTHEAD CODE STAMPED ON YOUR CURRENT COMPONENT BEFORE ORDERING. If it doesn't explicitly read "GS40U", do not purchase without contacting your machine manufacturer first.
Not sure? Send us a quick photo of your current printhead's factory part code sticker before buying, and we will verify the fit for you!
