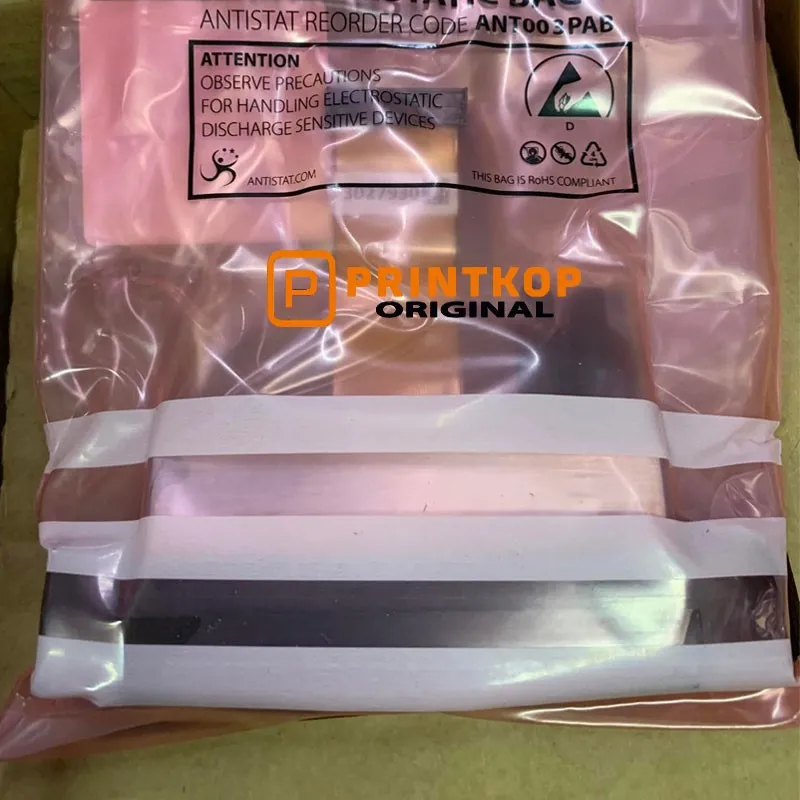

The Xaar 1003 GS12U Printhead - XP10100165 is a premium, high-performance piezoelectric industrial inkjet printhead engineered by Xaar for demanding single-pass industrial applications like UV graphics, packaging, labeling, floor tile decoration, and 3D textured effects. The "GS12" designation signifies a baseline drop size of 12 picoliters (pL) to balance sharp details with high ink volumes, while the "U" indicates compatibility with UV-curable, oil-based, and solvent inks.
Item specifics
- Brand: Xaar
- MPN: XP10100165 (or alternate SKU batch variant XP10100159)
- Active Nozzles: 1000 optimized geometry nozzles across 2 interleaved rows.
- Print Swathe Width: 70.5 mm.
- Native Resolution: 360 npi (nozzles per inch), supporting clear print outputs up to 360x360 dpi.
- Print Swathe Width: 70.5 mm
- Drop Volume Range: Variable grayscale from 12 pL up to 84 pL across 8 gray levels.
- Drop Velocity: 5 m/s
- Firing Frequency: 6 kHz (at 8 levels), 12 kHz (at 4 levels), up to 27 kHz (binary mode).
- Maximum Line Speed: Up to 50 m/min at 4 gray levels
- Physical Weight: 144 g (dry).
- Country/Origin: United Kingdom (Manufactured at official Xaar)
Compatible printer models
The Xaar 1003 GS12U printhead is designed for high-end single-pass and wide-format industrial UV digital presses. Below is a comprehensive list of known compatible printer brands and models, alongside systemic compatibility rules:
- Xeikon / Jetrion: Jetrion 4900, Jetrion 4950, and other Jetrion series industrial digital label presses.
- EFI VUTEk: Select high-speed single-pass UV printing setups.
- Flora UV Printers: Various single-pass or industrial wide-format UV flatbed and roll-to-roll models.
- HandTop: HT series industrial UV digital printers.
- Docan: Specialized UV flatbed and hybrid production printing lines.
- Allwin & SID: Industrial-grade UV roll-to-roll and multi-pass UV platforms.
- KingT & Jetbest: Single-pass industrial label and packaging machinery.
Important Notice
To prevent costly buyer return requests, it is critical to explicitly state what this head does NOT fit:
Do not buy this Xaar 1003 GS12U if you own any of the machines listed below. It looks identical on the outside, but the internal electronics are totally different and will not work.
- NOT for Ceramic Printers (The "C" Variant Systems): This printhead is the "U" (UV/Solvent) model. It cannot be used in ceramic tile decoration machinery designed for the Xaar 1003 GS12C (or 1001C / 1002C). The internal seals and mechanical tolerances are completely different. Abrasive ceramic glaze inks will instantly ruin this UV head.
- NOT for Different Drop-Size Waveforms (GS6U & GS40U Systems): While it physically fits into the same mounting slots as the GS6U (6 picoliter) and GS40U (40 picoliter) printheads, it is not electronically or optically interchangeable. You cannot mix a GS12U into a print bar configured for GS6U or GS40U without causing severely broken image density, text distortion, and banding.
- NOT for Water-Based (Aqueous) Inkjet Printers: This head is strictly built for UV-curable, solvent, and oil-based chemistry. It does not fit or work with standard water-based textile, dye, or pigment desktop/commercial wide-format printers (such as Epson, Canon, or HP DesignJet lines).
- NOT for Other Xaar Series Platforms: This printhead will not fit printers configured for the Xaar 128, Xaar 501, Xaar 2001, or Xaar Nitrox series. The physical dimensions, ribbon cable connections, data configurations, and mounting blocks are completely incompatible.
Not sure? Send us a quick photo of your current printhead's factory part code sticker before buying, and we will verify the fit for you!
